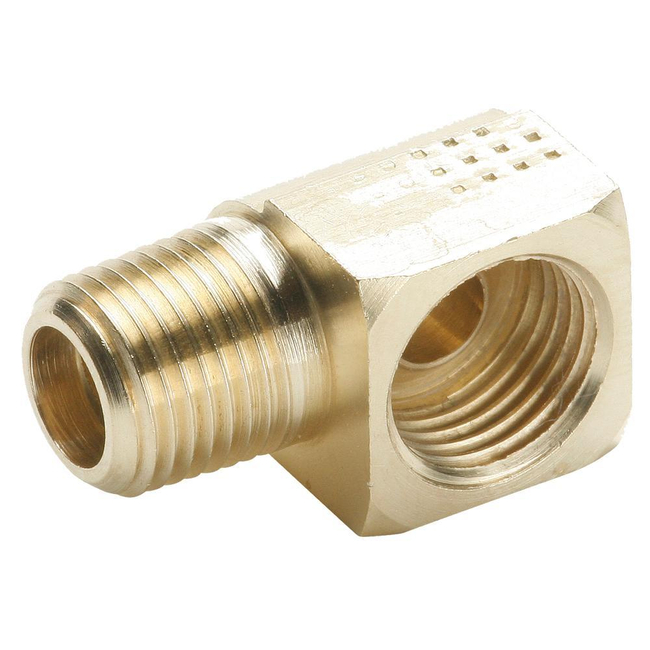

Brass Inverted Flare Fittings
Brand: Parker HannifinParker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends.
These fittings are well adapted for high pressure service and have exceptional resistance to mechanical pull out.
The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety.
Inverted Flare fittings provide excellent vibration resistance. All fittings meet functional requirements of SAE J512.
Features- All brass construction
- Internal flare for tighter bends
- Steel Zinc Chromate nut available
- U.L. listed for flammable liquids
- Meets functional requirements of SAE J512
- Economical
- Metal-to-metal seal
- Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Specifications
Brand
Applications
- Pumps, Brake Lines
Connection Type
- Flare, Thread
Industry Standards
- SAE J512
Material
- Brass
Maximum Working Pressure (bar)
- 131 (-3), 96 (-4), 83 (-5), 69 (-6), 52(-8), 45 (-10), 193 (-2), 38 (-12)
Maximum Working Pressure (psi)
- 1900 (-3), 1400 (-4), 1200 (-5), 1000 (-6), 750 (-8), 650 (-10), 2800 (-2), 550 (-12)
Maximum Working Temperature (°C)
- 121° C
Maximum Working Temperature (°F)
- 250° F
Media
- Water, Air, Inert & Non-Combustible Gasses, Flammable Liquid, Freon
Minimum Working Temperature (°C)
- -53° C
Minimum Working Temperature (°F)
- -65° F
Nut Material
- Brass, Zinc Chromate Steel
Shape
- Various
Tubing Material
- Copper, Aluminum, Brass, Welded Steel Hydraulic Tubing That Can Be Flared
- Hydraulic Brake
- Power Steering
- Fuel Lines
- Transmission Cooler Lines
- Flammable Liquids and Gases
