Valve, Control, Model 210, 4 Inch - Spare Parts

Brand: TechnipFMC

The Smith Meter Model 210 Valve is typically used in conjunction with either a Smith Meter AccuLoad® or microLoad Preset Controllers for loading and unloading at truck racks, bulk plants or processing installations.

The Smith Meter Model 210 Valve is a Smith Meter 200 Series Valve with two solenoid controls.

The normally-open (N.O.) and normally-closed (N.C.) solenoids, located in the upstream and downstream portions of the control loop, respectively, control the operation of the valve.

With both solenoids energized, high upstream pressure is blocked allowing the product in the cover to vent to low downstream pressure, opening the main valve.

Conversely, de-energizing both solenoids allows high upstream pressure to close the valve.

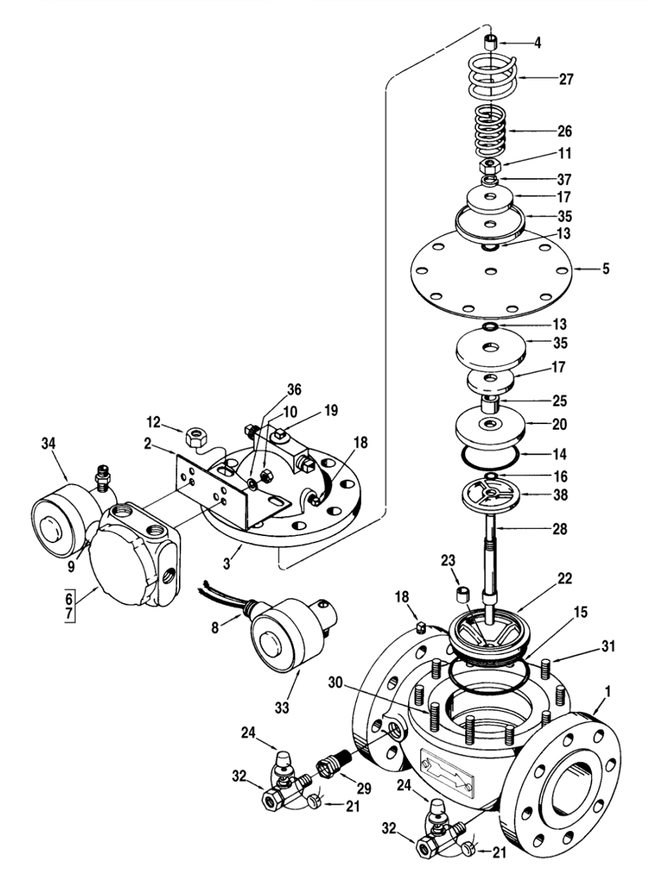

1 - 12 of 49 Part Numbers

per page:

001627-400

Seal, Lead and Wire - Item 21

002876-400

Nut, 5/16"-18, UNC-2B - Item 10

002917-400

Washer, Lock - Item 36

006309-400

Nut, Stud: Current Design – 5/8-11", UNC-2B - Item 12

006415-400

Previous Design – 1/2-13" - Item 12

006505-002

Plug, Pipe, 1/2" NPT, Hex. Head - Item 19

009630-400

Nipple, 1/2" x 1-1/8" - Item 8

507399-001

Buna - Item 5

507399-002

Viton - Item 5

507399-009

Previous Design (8 Stud Holes): L.S. Buna - Item 5

507399-011

Viton - Item 5

507399-012

Current Design (10 Stud Holes): L.S Buna - Item 5
