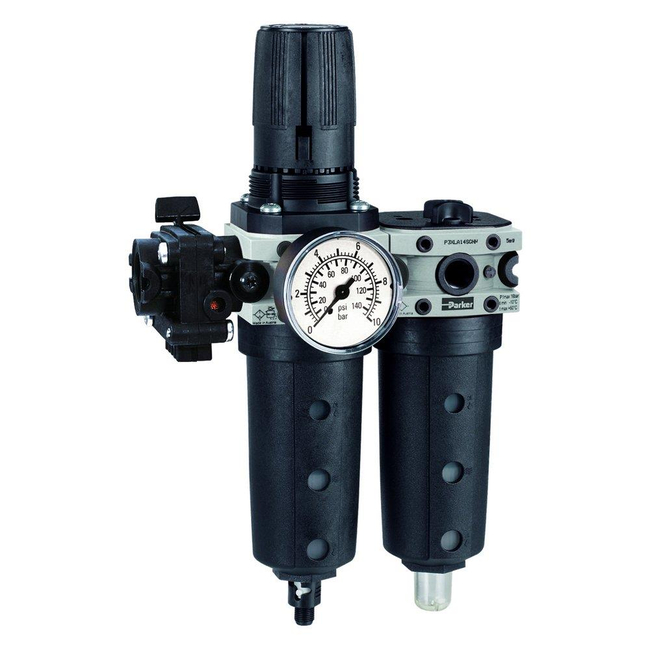

P3X (SV+F/R+L) Combo - Pneumatic Division Europe

P3X (SV+F/R+L) Combo - Pneumatic Division Europe

Brand: Parker Hannifin
Add Product to My Catalog

P3XAA is a 169 mm combo, ½",¾" BSPP (NPT ½") port, slide valve, 5/40 µ, high tech polymer bowl with combined manual/semi-auto or auto drain. Max pressure 16 bar with P2 ranges 0 to 4, 8 & 16 bar, nano-mist lub. Temp -10°C to 60°C.

Parker's P3L Lite combo is a configured 2-piece unit consisting a filter regulator and mist style lubricator as one part number.

The P3L combo provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. This fully featured P3L Lite combo can be assembled ready for use.
Features
  • Integral ¼ ports (BSPP & NPT)
  • High efficiency 5 micron element as standard
  • Excellent water removal efficiency
  • Robust but lightweight construction
  • Secondary pressure ranges 2, 4 & 8 bar
  • Proportional oil delivery over a wide range of air flows
  • Screw slot control for precise oil drip rate adjustment balanced poppet valve standard, with solid piston control

Specifications

Brand

Body Material

  • High Tech Polymer

Bowl Material

  • High Tech Polymer

Configuration

  • SV+F/R+L

Drain Option

  • Combined Manual / Semi-Auto / Auto Drain

Element

  • 5 µ / 40 µ

Flow Rate (dm3/sec)

  • 76 (1/2") / 77 (3/4")

Flow Rate (scfm)

  • 161 (1/2") / 163 (3/4")

Gauge Port

  • 1/4"

Maximum Inlet Pressure (bar)

  • 16 (High Tech Polymer)

Maximum Inlet Pressure (psig)

  • 232 (High Tech Polymer)

Operating Temperature (°C)

  • -10° to 60° C

Operating Temperature (°F)

  • 14° to 140° F

Port Size

  • 1/2", 3/4", 1/2" NPT Only

Port Type

  • BSPP / NPT

Pressure Control Range (bar)

  • bar: 0 to 4, 0 to 8, 0 to 16

Pressure Control Range (psig)

  • psig: 0 to 60, 0 to 125, 0 to 232

Product Type

  • P3X Combination

Seal Material

  • Nitrile

  • To be Used in Combination with Valves and Cylinders at the Transfer Point from Workshop to Machine
  • In Combination with Tools for Assembly and on the Shop Floors
  • To Protect Tools and Cylinder Against Corrosion
  • Reduce Friction
  • Markets:
    • Machine Tools
    • Miscellaneous Industrial
    • Miscellaneous Manufacturing
    • Air and Gas
    • Appliances
    • Factory Automation
    • Entertainment Automation
    • Molding
    • Packaging Machinery
    • Printing and Marking Equipment
    • Vehicle Assembly Facilities
    • Wearing Apparel
    • Food and Beverage
    • Miscellaneous Processing
