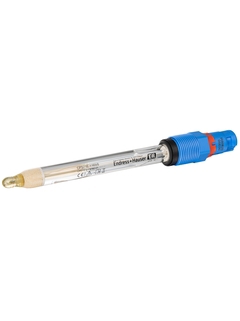

Digital pH sensor Memosens CPS71E
Brand: Endress+Hauser Group Services AG
Memosens CPS71E is specially designed for demanding processes. Its unique, contamination-resistant reference and its resistance to moisture ensure reliable measurement even in heavily polluted, aggressive media such as strong acids and bases. Thanks to Memosens 2.0 digital technology, CPS71E offers extended storage of calibration and process data providing the perfect basis for predictive maintenance. Pre-calibration in the lab and quick sensor exchange on site maximize process uptime.Features
- The electrode's unique ion trap prevents poisoning of the junction and reference, making it resistant to strong acids and bases and ensuring a long sensor lifetime.
- The optional pressurized reference allows for reliable measurement in blocking media such as dispersions.
- Flexible installation thanks to optional upside-down mounting
- Inductive cable connection and non-contact signal transmission eliminate any problems due to moisture or corrosion and increase process integrity.
- Fast sensor exchange on site reduces process downtime and operating costs.
- Memosens 2.0 digital technology makes trend identification and predictive maintenance possible thanks to its extended storage of calibration and process data. The technology paves the way for advanced IIoT services.
Specifications
Measuring principle
- Potentiometric
Application
- Process technology and monitoring of processes with: Rapidly changing pH values
- High proportion of electrode poisons such as H2S
Characteristic
- Digital pH electrode for chemical process with an ion trap for poison-resistant reference
Measuring range
- Application B: pH: 0 to 14
- Application H: pH: 0 to 12
Design
- All shaft lengths with temperature sensor
- Advanced gel technology
Material
- Sensor shaft: Glass to suit process
- pH membrane glass: Type B, Type N
- Metal lead: Ag/AgCl
- Open aperture: Ceramic junction, zirconium dioxide
- O-ring: FKM
- Process coupling: PPS fiber-glass reinforced
- Nameplate: Ceramic metal oxide
Dimension
- Diameter: 12 mm (0.47 inch)
- Shaft lengths: 120, 225, 360 and 425 mm
- (4.72, 8.86, 14.2 and 16.7 inch)
Process temperature
- 1 to 140 °C (32 to 284 °F)
Process pressure
- 0,8 to 14 bar (11,6 to 203 psi) (absolute)
Temperature sensor
- NTC 30k
Ex certification
- With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
- hazardous areas Zone 0, Zone 1 and Zone 2.
Connection
- Inductive, contactless connection head with Memosens 2.0 technology
Ingress protection
- IP68
Additional certifications
- Additional certifications
Process Technology and Monitoring of Processes with:
- Rapidly Changing pH Values
- High Proportion of Electrode Poisons Such As H2S
