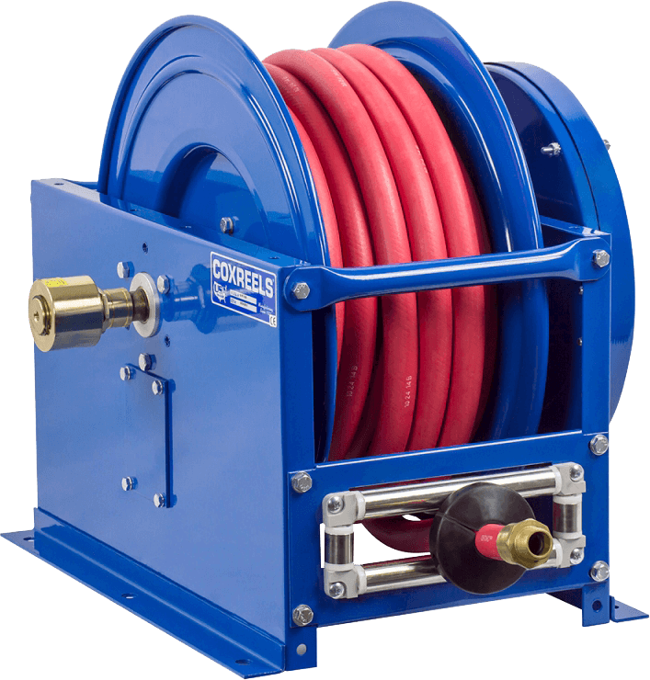

Spring Driven Reels | SP-Fuel Series
Brand: COXREELS®Coxreels® Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil.
Coxreels® professional fuel dispensing reels are an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks.
The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.
Swivel
- Machined from solid brass 90º full - flow NPT swivel for fuel dispensing applications
- Swivel seals: Nitrile
Design & Structure
- Reel features a sturdy box-style frame design
- Reel adjusts to wall, floor, vehicle & overhead positions
- Heavy gauge 1/4" steel base for maximum strength
- Reinforced steel frame provides maximum strength & stability
- Long lasting self-lubricated flange bearings for smooth rotation
- Heavy duty 1" stainless steel pinch-proof rollers
Retract
- Enclosed factory tuned & matched cartridge-style spring motor
- Non corrosive stainless steel pawl spring
- Cast iron lock ring with non-sparking bronze pawl
- Multi-position lock ratchet mechanism secures hose at desired length
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2 - year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- Swivel - Machined from solid brass 90º full-flow NPT swivel for fuel dispensing applications.
- Cartridge Motor - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box - Style Design - Sturdy box-style, reinforced steel frame design provides maximum strength and stability.
- Steel Rollers - Heavy duty 1" stainless steel pinch-proof rollers.
- Other Features Include - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.
