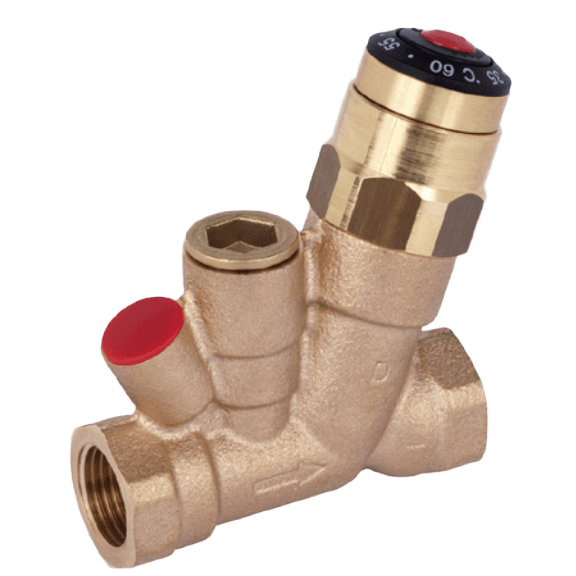

MTCV Multifunctional Thermostatic Circulation Valve

Brand: Danfoss

The MTCV is a multifunctional thermostatic balancing valve used in domestic hot water installations with circulation.

The MTCV provides a thermal balance in hot water installations by keeping a constant temperature in the system, thus limiting the flow in the circulation pipes to the minimum required level.

1 - 2 of 2 Part Numbers
003Z1515
003Z1515
  • Valve Size - DN 15
003Z1520
003Z1520
  • Valve Size - DN 20
1 - 2 of 2 Part Numbers

Specifications

Brand

Cone Material

  • Stainless Steel

Enclosure, Body Material

  • Rg5 Bronze

Flow Rate

  • DN 15: 1.5 m³/hour (Kvs) at 20° C (68° F)
  • DN 20: 1.8 m³/hour (Kvs) at 20° C (68° F)

Gasket Material

  • Copper

Hysteresis

  • 1.5 K

O-Ring Material

  • EPDM

Operating Pressure

  • psi: 145 (kPa: 1,000, bar: 10) - Max.

Proof Pressure

  • psi: 232 (kPa: 1,600, bar: 16)

Sensor / Probe Type

  • Pt1000

Spring Material

  • Spring Housing: Cuphin Alloy
  • Stainless Steel

Temperature Range

  • 35° to 60° C (95° to 140° F)
  • Maximum

Valve Size

  • 1/2" (15 mm)
  • 3/4" (20 mm)

  • Domestic hot water installations with circulation
