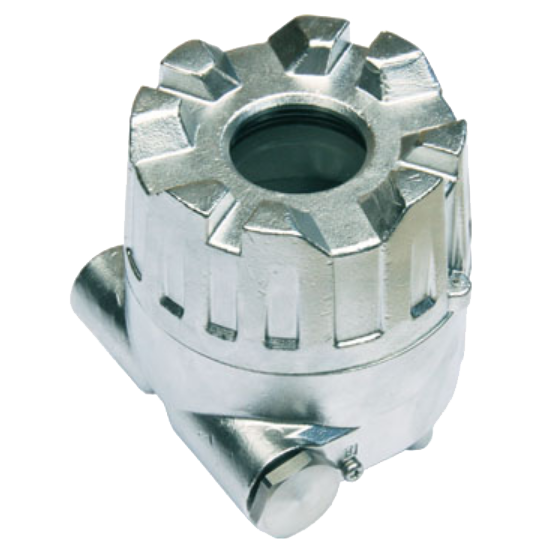

SPTM-65V Smart Positioner
Brand: Rotork YTCThe SPTM-65V is a flame-type Electronic Position Transmitter that senses the mechanical position change of the stem being on the valve or similar device and converses to the current signal of DC4~20mA outputs.
Features- Convenient wiring: 2-Wire type
- High accuracy and reliability
- Simple change for RA vs DA action setting
- Convenient adjustment of zero and span
1 - 8 of 8 Part Numbers
SPTM-65VLC
- Motion Type - Linear
SPTM-65VLC1
- Motion Type - Linear
- Lever Type - 10-40 mm Linear
SPTM-65VLC2
- Motion Type - Linear
- Lever Type - 20 - 70 mm Linear
SPTM-65VLC3
- Motion Type - Linear
- Lever Type - 50 - 100 mm Linear
SPTM-65VLC4
- Motion Type - Linear
- Lever Type - 100 - 150 mm Linear
SPTM-65VRC
- Motion Type - Rotary
SPTM-65VRC1
- Motion Type - Rotary
- Lever Type - Standard Rotary
SPTM-65VRC2
- Motion Type - Rotary
- Lever Type - NAMUR Rotary
1 - 8 of 8 Part Numbers
Specifications
Brand
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Conduit Connection
- PF 3/4 (G 3/4")
Enclosure, Body Material
- 316 Stainless Steel
Environmental Protection
- Ex d IIC T6
- IP67
Hysteresis
- ± 0.2 % of Span
Independent Linearity
- ± 1 % of Full Scale
Input
- 2-Wire
Input Signal
- 0 to 30°
- 0 to 90°
Load Impedance
- Maximum
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Operating Temperature - Display
- -30° to 85° C (-22° to 185° F)
Output
- 4-20 mA DC
Sensitivity
- ± 0.2 %
Supply Voltage
- 10-30 Vdc
