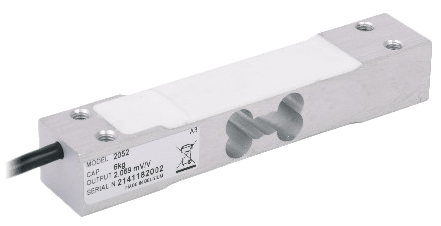

2052 Single Point Load Cell "Off Center"
Brand: Sensy - Sensors & Synergy S.A.Small sized single point load cell.
Features- Designed for off-center load
- Maximum platform size: 250 x 250/400 x 400 mm (according to capacity)
- Small sized
- Material: anodized Aluminum alloy
- Protection: IP 54
- Easy to install
- Available options (non exhaustive list) :
- ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
Specifications
Accuracy
- 0.03 % of Full Scale
- 3,000 D Except Thermal Drifts
Applications
- Batching System
- Bench Scales
- Hoppers
Approvals & Certifications
- ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- CE
Cable Length
- 1.64 ft (0.5 m)
- 5 ft (1.5 m)
Capacity
- 3 to 200 kg
Enclosure, Body Material
- Aluminum - Anodized
Environmental Protection
- IP54
- IP63
Insulation Resistance
- > 5,000 MΩ
Linearity
- Error: < ± 0.025 % of Full Scale
Load Limit
- 150 % of Full Scale
Repeatability
- Repeatability Error: < ± 0.015 % of Full Scale
Resistance
- Input/Output: 352 ± 2 ohms
Sensitivity
- Sensitivity Tolerance: < ± 0.2 %
Service Temperature
- -30° to 70° C (-22° to 158° F)
Storage Temperature
- -50° to 85° C (-58° to 185° F)
Temperature Coefficient
- < ± 0.015 % of Full Scale/10° C (18° F)
- < ± 0.023 % of Full Scale/10° C (18° F)
- < ± 0.05 % of Full Scale/10° C (18° F)
- < ± 0.1 % of Full Scale/10° C (18° F)
Zero Balance
- ± 0.02 mV/V
