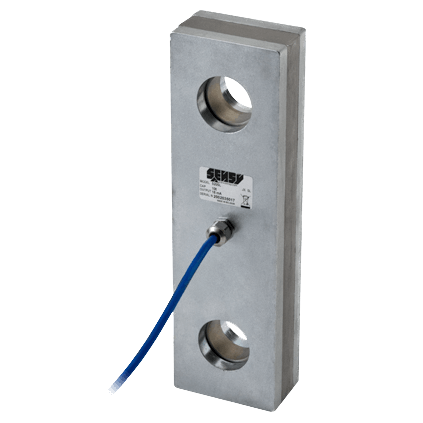

5205L Tension Load Cell
Brand: Sensy - Sensors & Synergy S.A.Tension load cell specially designed for load limitation on hoisting devices.
Features- Sturdy design
- Breaking load > 500%
- CE certified for hoisting devices
- Material: nickel plated steel
- Protection IP 66
- Easy to install (standard shackles)
- Cable length:
- 0.5 to 5 t: 3 m
- 10 to 25 t: 6 m
- Complete range of "CE" certified electronics and load limiters
- Available options:
- ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- Amplified output (V or mA)
Specifications
Applications
- SL - HOIST: Hoisting Devices & Crane Security in Combination with a Load Limitation Eelectronic: (BRIDGEBOY, CRANEBOY)
- SL - LIFT: Load Limitations for Lifts
Approvals & Certifications
- ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- CE
Cable Length
- 10 to 20 ft (3 to 6 m)
Capacity
- 0.5 to 25 T
Electrical Connectors
- DIN 45322
Enclosure, Body Material
- Nickel-Plated Steel
Environmental Protection
- IP66
Excitation Voltage
- 10 Vdc
- 3-12 Vdc - Nominal Range
Insulation Resistance
- > 5,000 MΩ
Linearity
- Error: < ± 1 % of Full Scale
Load
- > 1000 % of Full Scale - Breaking Load (SL-LIFT)
- > 500 % of Full Scale - Breaking Load (SL-HOIST)
Load Limit
- 200 % to 300 % of Full Scale
Resistance
- Input/Output: 352 ± 2 ohms
Sensitivity
- Nominal Sensitivity: 0.5 to 1 mV/V
Service Temperature
- -30° to 70° C (-22° to 158° F)
Static Lateral Force
- 150 % of Full Scale
- 200 % of Full Scale
Storage Temperature
- -50° to 85° C (-58° to 185° F)
Temperature Coefficient
- < ± 0.2 % of Full Scale/10° C (18° F)
Zero Balance
- ± 0.02 mV/V
