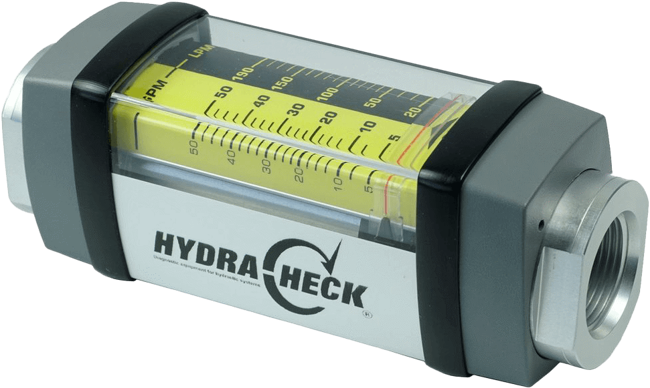

Inline Flow Meter for Petroleum Fluids (One-Way Flow)

Brand: Hydracheck
Add Product to My Catalog

Ideal for monitoring pump performance and media flows in hydraulic systems.
Features
  • Flows up to 150 GPM (568 Lpm)
  • Pressures up to 6000 PSI (414 bar)
  • Use these flow meters to setup, adjust and test hydraulic pumps, motors, cylinders and more
  • The only way to test a pump and motors safely and effectively is to use a flow meter

Specifications

Brand

Materials

  • 2024 - T351 Anodized aluminum body, piston and cone
  • T303 Stainless body, 2024 - T351 Anodized aluminum piston and cone

Pressure Seals

  • Viton

Thread

  • SAE J1926/1

Temperature Range

  • -20° to 240° F (-29° to +116° C)

Pressure Rating

  • Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor
  • Stainless Steel Operating: 6,000 psi/414 bar max. (5,000 psi/345 bar max. for 3/4" to 1-1/4" series) with a 3:1 safety factor

Accuracy

  • ± 2 % of Full Scale

Repeatability

  • ± 1 %

Calibration

  • 0.876 Specific Gravity - For use with hydraulic oil
