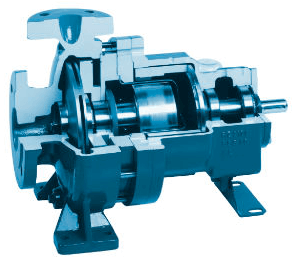

CBE and CBM Metallic, Magnetic Drive, ISO Chemical Process Pump
Brand: Flowserve SIHIThe standard chemical process pumps of the CBE/CBM range are horizontal, single-stage volute casing pumps with dimensions to ISO 2858 and meet the technical requirements of ISO 5199 and ISO 15783.
Features- Fully enclosed impellers for high efficiency, low NPSHr applications
- Modular configuration of either bare shaft end or close-coupled design
- Shaft sealing options are single or double acting mechanical seals or magnetic drives
- Hastelloy, ceramic and high efficiency containment shells for demanding magnetic coupled applications
- Back pull-out design allows removal of rotating element without removing casing, piping or motor
- Ceramic Canister 1:1 exchange with standard and high efficiency Hastelloy shells
- Samarium Cobald magnet life extended by temperature limits up to 350°C (662°F) and reversible torque within the allowed temperature range
- Continues operation at 10% BEP due to low flow
- Process fluid is mechanically sealed from leakage via an optional additional containment shell
- Lower total cost of ownership due to high efficiency and low NPSH hydraulics
- No maintenance necessary when using the SSiC bearing
- Easy alignment and true back pull-out design with closed coupled assembly
Specifications
Brand
CBE
- Close Coupled Magnetic Drive
Operating Parameters
- /h (2862 gpm)
- Flows to 650 m
- Heads to 150 m (492 ft)
- Pressures to 25 bar (362 psi)
- Temperatures from -40° C (-40° F) to 300° C (572° F) with Heat barrier up to 400° C (752° F)
Size Range
- Sizes from 25 mm (1 in) to 150 mm (6 in)
