Vibranivo® - VN 5020 Vibration Level Switch
Brand: UWT GmbHApplication Area

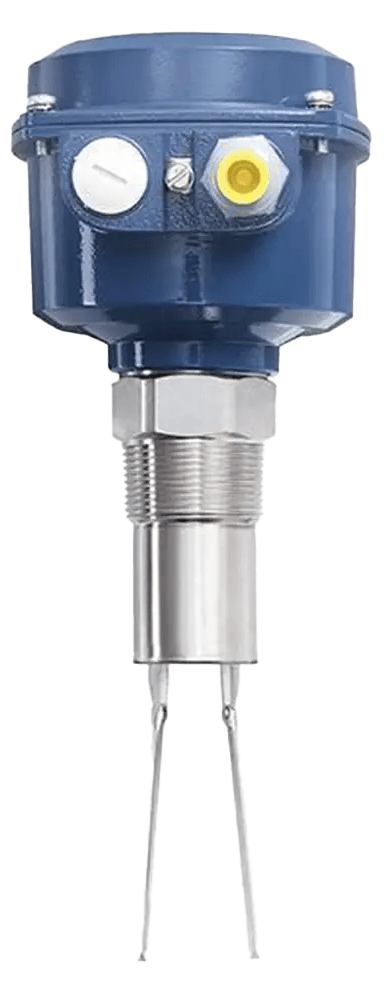

The vibrating fork VibranivoĀ® VN 5020 is used in storage and process vessels as a full, demand and empty detector in dry and free flowing bulk solids.
The short probe arm ensures high robustness for applications with heavy mechanical loads.
The high surface quality of the stainless steel probe makes the level sensor compatible for use in applications with hygiene requirements.
The VN 5020 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.
Features- Maintenance-free sensor for use in many bulk materials
- Probe arm is completely made of stainless steel
- Flameproof versions available for use in potentially explosive atmospheres (gas)
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
- Interface Level Measurement
Version
- Short Extension
- Interface Detection
- Remote Version
Medium
- Solids
Mounting Position
- Angled (In the Cone)
- In Down Pipes
- Horizontal
Ambient Temperature
- -40Ā° C to +60Ā° C (-40 to +140Ā° F)
Process Temperature
- -40Ā° C to +150Ā° C (-40Ā° F to +302Ā° F)
Process Pressure
- -1 bar ā¦ +16 bar (-14.5 psi ā¦ +232 psi)
Minimum Sensitivity
- > 50 g/l (> 3 lb/ftĀ³)
Housing Type
- Standard
- Flameproof
- Increased Safety
Housing Material
- Aluminum
Housing Protection Rating
- IP66, NEMA Type 4X
Threaded Connection
- ā„ R 1-1/2"
- ā„ NPT 1-1/2"
Flange Connection
- ā„ 2" / ā„ DN 100
Hygienic Fittings
- Tri-Clamp 2"
Wetted Materials
- Stainless Steel 1.4301 (304)
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4541 (321)
Mechanical Load
- Oscillating Rods: 0.6 kN
Minimum Immersion Length
- 165 mm (6.5")
Maximum Immersion Length
- 165 mm (6.5")
Power Supply
- 19-230 Vac
- 12.5 - 36 Vdc
- Universal Voltage: 19-55 Vdc / 19-230 Vac
Signal Output
- Relay SPDT
- Relay DPDT
- Transistor PNP
- 8/16 mA
- 4-20 mA
Approvals
- CE, General Purpose, ATEX, IEC-Ex, TR-CU, INMETRO, FM, CSA
Explosion Protection
- Dust Ignitionproof (Ex t)
- Intrinsic Safe (Ex i)
- Explosionproof/ Flameproof (Ex d)
- Increased Safety (Ex de)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Adjustable Output Delay
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
Documentation
Certificates
