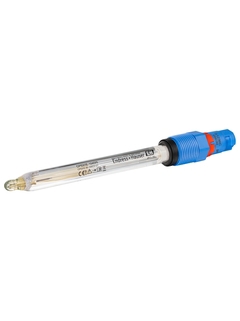

Digital pH sensor Memosens CPS31E
Brand: Endress+Hauser Group Services AG
Memosens CPS31E is the expert for pH compensation in disinfection processes. It delivers stable measurement results, ensuring safe swimming pool and drinking water. Thanks to Memosens 2.0 digital technology, CPS31E provides the perfect data basis for predictive maintenance, offers easy operation and more process uptime since it can be calibrated in the laboratory and quickly exchanged on site. The sensor resists moisture and its 3 optional junctions make it suitable for minimum conductivity.Features
- Reliable: Ceramic junction ensures reliable measurement at low conductivities. For minimum conductivities, 3 junctions are the best choice.
- Robust: The optional salt storage provides for extended operating time.
- Precise: The sensor shows minimum drift thanks to a very low level of ion depletion in electrolyte.
- Memosens 2.0 offers extended storage of calibration and process data. These data are the ideal basis for predictive maintenance and can also be used to develop and provide enhanced IIoT services.
- Safe: Non-contact, inductive, digital signal transmission eliminates errors due to moisture.
- Cost-efficient: Fast sensor exchange in the field increases process uptime and regeneration extends the sensor lifetime.
Specifications
Measuring principle
- Potentiometric
Application
- • Drinking water
- • Swimming pool water
- • pH compensation during the measurement of free chlorine
Characteristic
- Digital pH electrode for standard applications in drinking
- water and swimming pool water
Measuring range
- pH 1 to 12
Design
- All shaft lengths with temperature sensor
Material
- Sensor shaft: Glass to suit process
- pH membrane: glass Type A
- Metal lead Ag/AgCl
- Open aperture: Ceramic junction
- O-ring: FKM
- Process coupling: PPS fiber-glass reinforced
- Nameplate: Ceramic metal oxide
Dimension
- Diameter: 12 mm (0.47 inch)
- Shaft length: 120 mm (4.70 inch)
Process temperature
- –15 to 80 °C (5 to 176 °F)
Process pressure
- 0.8 to 4 bar (11.6 to 58 psi) (absolute)
Temperature sensor
- NTC 30k
Ex certification
- With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
- hazardous areas Zone 0, Zone 1 and Zone 2.
Connection
- Inductive, contactless connection head with Memosens 2.0 technology
Ingress protection
- IP68
- Drinking Water
- Swimming Pool Water
- pH Compensation for Free Chlorine and Free Bromine Measurement
