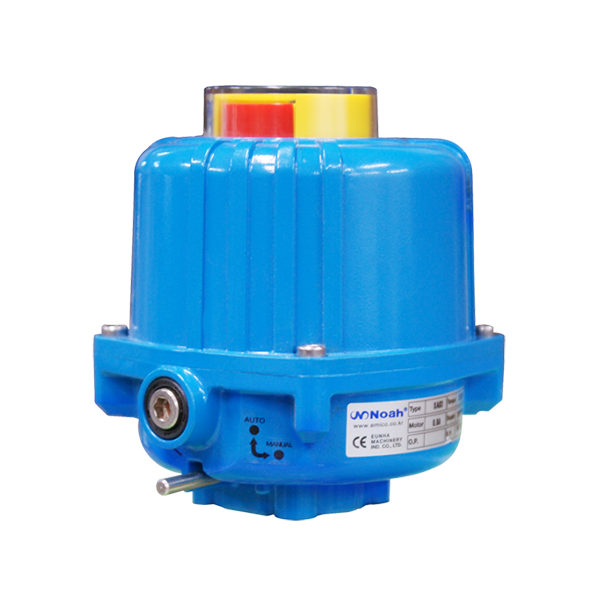

SA03 Quarter-Turn Electric Actuator
Brand: NOAH Actuation Co., Ltd.
Features
- SA Series are Compact Model which is Suitable for Small Butterfly and Ball Valves.
- Valve Position can be Detached by Means of Mechanical Dome Type Indicator in Remote.
- IP67 is Served as Standard.
Specifications
Brand
Enclosure
- Weatherproof Enclosure IP67 Nema4 and 6
Ambient Temperature
- -20° C~+70° C
Power Supply
- DC24 V
- AC24 Vac 110 / 230 V 50/60 Hz
Limit Switches
- Open / Close +Dry Contact Open/Close
Indicator
- Dome Type (LED Light Inside)
Manual Operation
- By L-Wrench (6 mm hexagon)
Space Heater
- 2 x 3W
Cable Entries
- 2-PF 1/2" (Option : 2-M20 x 1.5, 2-NPT 1/2")
Lubrication
- Shell Gadus S2 V220 2
Materials
- Aluminum Alloy
Surface Treatment
- Anodizing
External Coating
- Polyester(TGIC-free)
