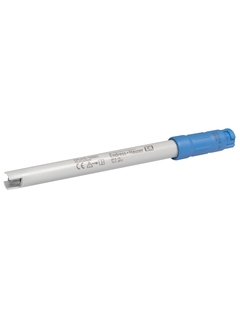

Digital pH sensor Memosens CPL51E
Brand: Endress+Hauser Group Services AG
With its robust plastic shaft and contactless inductive Memosens cable connection, Memosens CPL51E is made for random sampling directly in the field or in the laboratory. The sensor comes pre-calibrated and is directly ready for use. Ideally to be used in combination with the mobile handheld Liquiline Mobile CML18 without any additional settings.Features
- The inductive Memosens sensor connection is insensitive to moisture and corrosion.
- Suitable for use in the laboratory or in the field to check your running process. A physical protection keeps the glass membrane safe in both environments.
- Automatic temperature compensation thanks to integrated temperature sensor.
- Fast response time even in cold ionweak water.
- Reference system with open aperture minimizes the risk of clogging.
- Supports the requirements of quality management with tamper-proof stored information such as serial number or calibration history
Specifications
Measuring principle
- Potentiometric
Application
- Measurements in drinking water, wastewater and process water
Characteristic
- Digital Memosens 2.0 pH sensor for laboratory measurements and
- random sampling in the field
- Robust pH sensor with plastic shaft
Measuring range
- pH 0 to 14 (1 to 12 application range)
Material
- Glass and polymer
Dimension
- Diameter: 12 mm (0.47 inch)
- Shaft length: 120 mm (4.72 inch)
Process temperature
- -5 to 80 °C (23 to 176 °F)
Process pressure
- 1 bar, not intended for continues measurment in process
Temperature sensor
- NTC 30kΩ
Connection
- Inductive, digital Connection head with Memosens technology
Ingress protection
- IP68
- Laboratory Measurement
- Random Sampling in The Field
