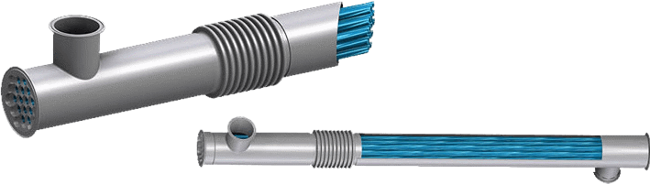

Ultra-Corrugated Multi Tube Heat Exchanger

Brand: Advanced Process Solutions
Add Product to My Catalog

Multi tube heat exchangers consist of three or more parallel tubes inside of a shell. Product flows inside the smaller tubes. This design is ideal for homogenous products with thin to medium viscosities, with or without particulates.

Multi tube heat exchangers are ideal for thin product processing. They can be utilized with pulpy products.

Our exclusive and unique “clean-head” design removes all flat surfaces from the tube sheet distribution face for optimum low distribution and CIP cleaning.

Multi-tube heat exchangers offer parallel product flow paths for maximum heat transfer area in a small package, with minimum pressure drops. Ideal for juices, nutritional drinks, tea, coffee, milk, and most ready to drink products.

Also used on sauces, soups, and concentrates.
Features
  • Ensure food safety – Clean head design enhances flow distribution
  • Save space and money – Ultra corrugations minimize heat transfer surface area
  • Reduce system size – Generates higher Reynolds #’s at lower flow rates
  • Run wide range of products – High pressure up to 800 psi
  • Maximize HE efficiencies – Product & media flow in counter current pattern
  • Customize solutions – Product tube diameters from 3/8″ to 1″

Specifications

Brand

Material of Construction

  • 304L Stainless Steel
  • 316L Stainless Steel
  • 2205 Stainless Steel
  • AL6XN Stainless Steel

Type

  • Equipped with Aseptic Fittings
  • All Welded with Expansion Joint
  • All Welded

  • Juice Products
  • Tomato Sauce
  • Pizza Sauce
  • Cocktail Sauce

Documentation

Brochure
