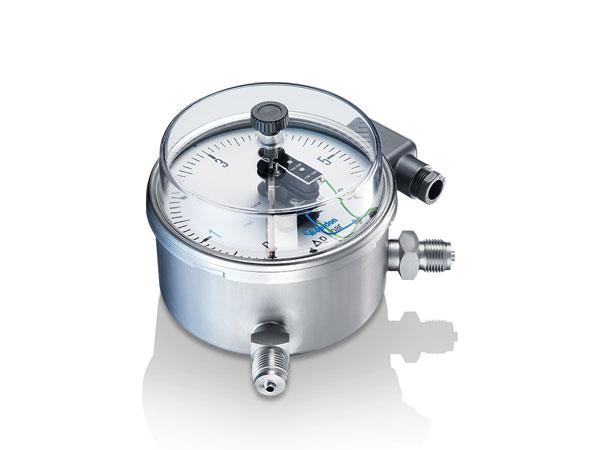

M33 Pressure Gauge
Brand: Bourdon
Features
- For corrosive process fluids and atmospheres
- Inductive contacts with sensor according to EN 60947-5-6 (NAMUR)
- Accuracy ± 3% FS
- Static pressure max. 100 bar
- Process connection 90° (V-type)
Specifications
Brand
Accuracy
- ± 3 % of Full Scale
Ambient Temperature Range
- -20° to +70° C
Bellows
- Stainless Steel 1.4404, AISI 316L
Bezel Ring Material
- Stainless Steel 1.4301, AISI 304
- Stainless Steel 1.4404, AISI 316L, Optional
Case Material
- Stainless Steel 1.4301, AISI 304
- Stainless Steel 1.4404, AISI 316L, Optional
Dial
- White, Aluminum
Electrical Connectors
- M20 x 1.5
- Via External Terminal Block
IP Protection Rating
- IP65
Maximum Measuring Range
- 0 to 25 bar
Minimum Measuring Range
- 0 to 250 Mbar
Minimum Pressure for 1 Contact
- 0 to 250 Mbar
Minimum Pressure for 2 Contacts
- 0 to 250 Mbar
Movement Material
- Stainless Steel
Number of Set Points
- 1 or 2
Pointer
- Black, Aluminum
Process Connection Material
- Stainless Steel 1.4404, AISI 316L
Type of Contact
- Inductive Contacts with Sensor According to EN 60947-5-6 (NAMUR)
Window Gasket
- Elastomer
Window Material
- Convex Transparent Polycarbonate Cover with Watertight Set Point Adjustment Knob
