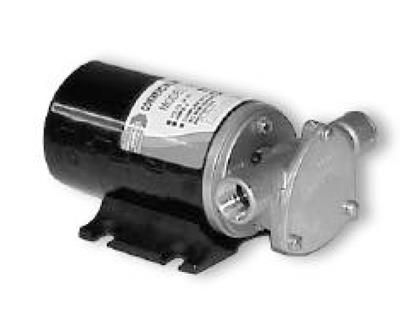

Jabsco Light Duty Vane Pump, 18680 Series

18680 Series Light Duty Vane Pump

Brand: Jabsco
Add Product to My Catalog

Diesel Transfer Pump.
Features
  • The pump head may be mounted at 90° increments on the motor to allow mounting as needed
  • Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)

1 - 3 of 3 Part Numbers
18680-0920
18680-0920
Jabsco Light Duty Vane Pump, 18680 Series
  • Amp Draw: 8 Amp
  • Fuse Size: 15 Amp
  • Voltage: 12 Vdc
18680-0940
18680-0940
Jabsco Light Duty Vane Pump, 18680 Series
  • Amp Draw: 5 Amp
  • Fuse Size: 10 Amp
  • Voltage: 24 Vdc
18680-1000
18680-1000
Jabsco Light Duty Vane Pump, 18680 Series
  • Amp Draw: 8 Amp
  • Fuse Size: 15 Amp
  • Voltage: 12 Vdc
1 - 3 of 3 Part Numbers

Specifications

Brand

Body Material

  • Bronze

Duty Cycle

  • 30 minutes at 10 feet (3 m) at 86°F (30°C)

Motor Type

  • Intermittant Duty Permanent Magnet Typical

Port Type

  • 1/2” NPT Female or 1” (25 mm) Hose Barb

Rotor

  • Plastic - Liquid Crystal Polymer

Seal

  • Nitrile Lip Seal

Shaft Material

  • Stainless Steel

Vanes

  • Plastic - Polyphenylene Sulfide

Voltage

  • 12 or 24 Vdc

Weight

  • 2.5 kg (5-1/2 lbs)

Documentation

Data Sheets
