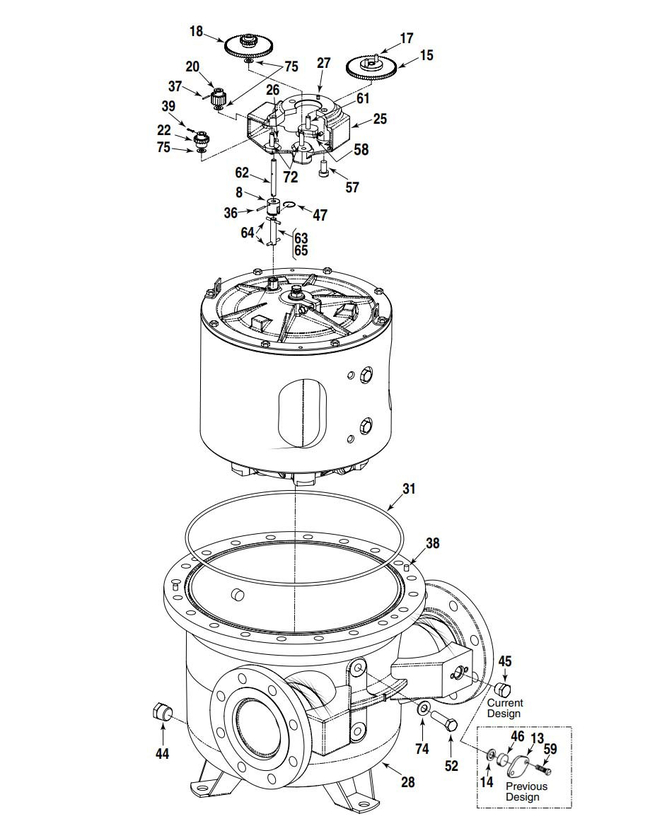

Smith Meter® 4" Steel Model F4 - Spare Parts
Brand: TechnipFMC
The Smith Meter model F4 is a 4", steel, double-case, straight-through (S3 through S8), rotary-vane, positive displacement meter.
Applications for the F4 include blending, batching, dispensing, inventory control, and custody transfer of oils, solvents, chemicals, paints, fats, and fertilizers.
Features- Superior accuracy―Smith Meter's rotary-vane meter principle, combined with the meter’s uniquely designed (offset) inlet and outlet nozzles, maximizes accuracy by minimizing pressure drop across the measuring chamber reducing slippage (flow through meter clearances)
- Low pressure drop―Streamlined flow path provides low pressure drop
- Positive and accurate registration―High-torque drive calibrator with adjustment in 0.05 percent (%) increments ensures accurate registration
- Long service life―Low-friction ball bearings, fixed cam-type timing, and rugged construction provide sustained accuracy and long service life
- Options:
- High-viscosity meter clearances extend operation at maximum flow rate from 400 to 2,000 millipascal-second (mPa.s)
- High-temperature clearances extend operating temperatures from 150 to 200 degrees Fahrenheit (°F) (65 to 93 degrees Celsius (°C))
- All iron trim option for operating temperatures above 200°F (93°C)
- Liquefied petroleum gas (LPG) trim option for low-lubricity liquids, such as LPG
- Compliant with NACE standard MR-01-75
- ASME Section VIII vessel construction is available for model F4-S3
1 - 12 of 208 Part Numbers
001627-400
001634-001
001723-400
002198-002
003325-002
003440-001
003449-001
003449-001
003526-002
003527-001
003551-001
003552-001
1 - 12 of 208 Part Numbers
Specifications
Brand
Maximum Flow Rate
- Continuous Rating with Standard Trim: 600 USGPM (2250 L/min)
- Intermittent Rating with Standard Trim: 750 USGPM (2725 L/min)
- Continuous/Intermittent Rating with all Iron or LPG Trim: 450 USGPM (1700 L/min)
Repeatability
- ± 0.02 %
Viscosity
- Standard: 400 mPa.s (2,000 Seconds Saybolt Universal (SSU)) maximum
- Optional: 2 pascal seconds (Pa.s) (10,000 SSU) maximum and specify "High Viscosity Meter Clearances"
- Over 2 Pa.s: Specify " High Viscosity Meter Clearances" and derate maximum flow rate in direct proportion to viscosity over 2 Pa.s. For example, at 4 Pa.s, derate maximum flow rate to 50 % of normal continuous rating 210 USGPM
Temperature - Standard Meter Clearances with
- Buna-N/PTFE: -20° to 150° F (-29° to 65° C)
- FKM: 10° to 150° F (-12° to 65° C)
- Low Temperature FKM: -50° to 150° F (-46° to 65° C)
Temperature - High Temperature Meter Clearances with
- Buna-N/PTFE: -20° to 200° F (-29° to 93° C)
- FKM: 10° to 200° F (-12° to 93° C)
- Low Temperature FKM: -50° to 200° F (-46° to 93° C)
Temperature - All Iron Trim with
- Buna-N: -20° to 225° F (-29° to 108° C)
- PTFE: -20° to 400° F (-29° to 205° C)
- FKM: 10° to 400° F (-12° to 205° C)
- Low Temperature FKM: -50° to 400° F (-46° to 205° C)
- Blending
- Batching
- Dispensing
- Inventory Control
- Custody Transfer of Oils, Solvents, Chemicals, Paints, Fats, and Fertilizers
