X20 – X35 E-Truck

Brand: Linde Material Handling
Add Product to My Catalog

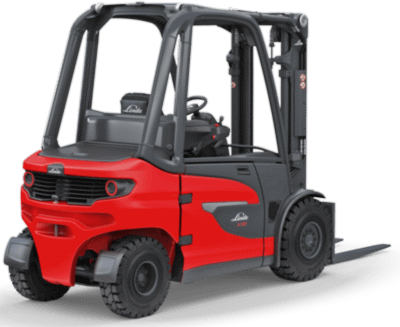

The X20 – X35 counterbalance forklift trucks from Linde Material Handling are the first electric forklifts whose high performance and robustness means they can be used as a genuine alternative to internal combustion (IC) trucks.

Customers therefore enjoy absolute freedom of choice and are able to choose a quiet, emission-free alternative for even the most challenging applications, without having to allow for any loss of performance.

The basis for all of this is the common platform developed by Linde for counterbalance forklift trucks, whether powered by internal combustion engines or electricity.

This means that the X20 – X35 forklifts combine the best of two worlds: the characteristic output and power development of IC trucks and the dynamics, flexibility, and freedom from emissions offered by electric trucks.
Features
  • All-round view from the driver’s cabin
  • Linde Curve Assist prevents tipping while turning
  • Linde Load Assist protects from tipping accidents
  • Spacious driver workspace with convenient all-round view
  • Ergonomic seat versions for personalized comfort
  • Control elements can all be reached without physical strain
  • Separation of chassis, drive, and mast to ensure the comfort of the driver, even on uneven floors
  • A longer wheelbase, large tires, and vibration-free drive axle enable use in challenging environments
  • New synchronous reluctance motor with water-cooled power modules ensures consistently high performance, even in extreme conditions
  • The mast design and overhead tilt cylinder also ensure safe load handling when working high up
  • Low servicing costs by means of remote diagnosis and maintenance
  • High truck availability
  • Rapid replacement of modular assemblies

View_Details

Specifications

Brand

Manufacturer's Type Designation

  • X20/600
  • X25
  • X30
  • X35

Series

  • 1252-01

Power Unit

  • Battery

Operation

  • Seat

Load Capacity/ Load

  • X20/600: 2.0
  • X25: 2.5
  • X30: 3.0
  • X35: 3.5

Load Centre Distance (mm)

  • X20/600: 600
  • X25: 500
  • X30: 500
  • X35: 500

Axle Centre to Fork Face (mm)

  • X20/600: 455.5
  • X25: 455.5
  • X30: 448.5
  • X35: 453.5

Wheelbase y (mm)

  • X20/600: 1835
  • X30: 1875
  • X25: 1835
  • X35: 1875

Service Weight

  • X20/600: 4837
  • X30: 5121
  • X35: 5536
  • X25: 4837

Axle Load with Load, Front/Rear (kg)

  • X20/600: 5663 / 1174
  • X25: 6315 / 1022
  • X30: 7104 / 1017
  • X35: 7953 / 1083

Axle Load without Load, Front/Rear

  • X20/600: 2513 / 2324
  • X30: 2586/ 2535
  • X35: 2673 / 2863
  • X25: 2513/2324

Tyres Rubber, SE, pneumatic, Polyurethane

  • SE

Tyre Size, Front

  • 250/ 75-12 (27 x 10-12)
  • 355 / 45-15 (28 x 12.5-15)

Tyre Size, Rear

  • 6.50-10
  • 225 / 75-10 (23 x 9-10)

Wheels, Number Front / Rear (x = Driven)

  • 2x / 2

Track Width, Front

  • 1008
  • 1060

Track Width, Rear

  • 946
  • 930

Mast / Fork Carriage Tilt, Forward / Backward

  • 5.0/8.0

Height of Mast, Lowered

  • 2220
  • 2218
  • 2224

Free Lift

  • 150

Lift

  • 3095

Height of Mast, Extended

  • 3852
  • 3850
  • 3856

Height of Overhead Guard (Cabin)

  • 2225

Seat Height Relating to SIP/ Stand Height

  • 1156
  • 1162

Towing Coupling Height

  • 587
  • 598
  • 600

Overall Length

  • 3671
  • 3704
  • 3709

Length to Fork Face

  • 2671
  • 2704
  • 2709

Overall Width

  • 1256
  • 1356

Fork Dimensions DIN ISO 2331

  • 45 x 100 x 1000
  • 50 x 120 x 1000

Fork Carriage to ISO 2328, Class / Type A, B

  • 2A
  • 3A

Width of Fork Carriage

  • 1150

Ground Clearance, Below Mast

  • 119
  • 117
  • 124

Ground Clearance, Centre of Wheelbase

  • 173
  • 178
  • 180

Aisle Width for Pallets 1000 × 1200 Crossways

  • 4008
  • 4043
  • 4048

Aisle Width with Pallet 800 × 1200 Along Forks

  • 4208
  • 4243
  • 4248

Turning Radius

  • 2352
  • 2394

Minimum Pivoting Point Distance

  • 655
  • 668

Travel Speed, with/without Load km/h

  • 22 / 22

Lifting Speed, with/without Load (m/s)

  • 0.56/0.58
  • 0.57 /0.58
  • 0.54 /0.58

Lowering Speed, with/without Load m/ s

  • 0.58/0.57

Tractive Force, with/without Load N

  • 7600/ 7600

Maximum Tractive Force, with/without Load N

  • 20000/ 20000

Climbing Ability, with/without Load

  • 22.2 / 33.2
  • 20.5 / 33.2
  • 18.3 / 31.2
  • 17.6/ 27.2

Maximum Climbing Ability, with/without Load %

  • 28.7 / 43.4
  • 26.4 / 43.4
  • 23.6/ 40.6
  • 19.9/ 35.3

Acceleration Time with/without Load (s)

  • 4.8/ 4.3
  • 4.9/ 4.3
  • 5.1 / 4.3
  • 5.3 / 4.4

Service brake

  • hydr. /mech.

Documentation

Data Sheet
