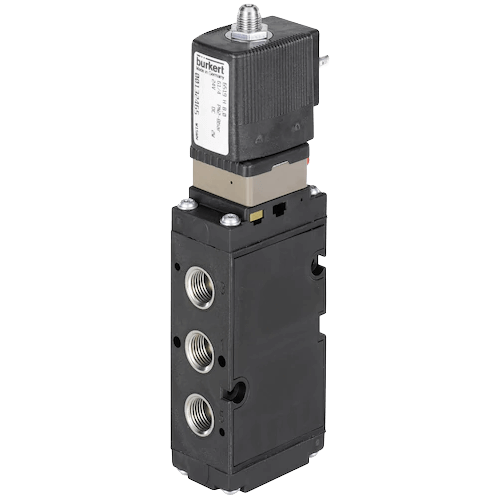

6519 Standard Pneumatic Solenoid Valve

Brand: Burkert Fluid Control Systems

Features:
  • Orifice size: 0.315" (8 mm) and 0.35" (9 mm)
  • Pilot valve body material: Stainless steel
  • Main valve body material: Aluminum ematal coated, stainless steel 1.4571
  • Threaded socket material: Aluminum, stainless steel
  • Medium temperature: -30° to 80° C (-22° to 176° F)
  • Ambient temperature: -30° to 80° C (-22° to 176° F) and -40° to 80° C (-40° to 176° F)
  • BSP connection: G 1/4" Female
  • NPT connection: 1/4" Female NPT
  • Voltage tolerance: 10%
  • Electrical power consumption: 2 W
  • Operating voltage: 24 Vdc
  • Seal material: PU, NBR, FPM

1 - 12 of 32 Part Numbers
231 386
231 386
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2 WWH
  • Flow Rate - 1,800 L/min
  • Voltage / Frequency - 24 Vdc
231 387
231 387
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2 WWH
  • Flow Rate - 1,800 L/min
  • Voltage / Frequency - 24 V, 50/60 Hz
231 388
231 388
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2 WWH
  • Flow Rate - 1,800 L/min
  • Voltage / Frequency - 110 V / 50/60 Hz
231 389
231 389
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2 WWH
  • Flow Rate - 1,800 L/min
  • Voltage / Frequency - 230 V / 50/60 Hz
231 390
231 390
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2-Bistable WWZ
  • Flow Rate - 2,100 L/min
  • Voltage / Frequency - 24 Vdc
231 391
231 391
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2-Bistable WWZ
  • Flow Rate - 2,100 L/min
  • Voltage / Frequency - 24 V, 50/60 Hz
231 392
231 392
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2-Bistable WWZ
  • Flow Rate - 2,100 L/min
  • Voltage / Frequency - 110 V / 50/60 Hz
231 393
231 393
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/2-Bistable WWZ
  • Flow Rate - 2,100 L/min
  • Voltage / Frequency - 230 V / 50/60 Hz
231 394
231 394
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/3-WWL
  • Flow Rate - 1,500 L/min
  • Voltage / Frequency - 24 Vdc
231 395
231 395
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/3-WWL
  • Flow Rate - 1,500 L/min
  • Voltage / Frequency - 24 V, 50/60 Hz
231 396
231 396
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/3-WWL
  • Flow Rate - 1,500 L/min
  • Voltage / Frequency - 110 V / 50/60 Hz
231 397
231 397
  • Model - Aluminum with Manual Override
  • Circuit Function - 5/3-WWL
  • Flow Rate - 1,500 L/min
  • Voltage / Frequency - 230 V / 50/60 Hz
1 - 12 of 32 Part Numbers

Specifications

Ambient Temperature Range

  • Aluminum: -40° to 80° C (-40° to 176° F)
  • Stainless Steel: -30° to 80° C (-22° to 176° F)

Approvals & Certifications

  • Compressed Air Quality: ISO 8573-1: 2010, Class 7.2.4

BSP Connection

  • G 1/4" Female

Consumption

  • Electrical Power Consumption: 2 W

Duty Cycle

  • 100 % Continuous Operation

Electrical Connectors

  • Tag Connector According to DIN EN 175301-803 (Previously DIN 43650) Form A for Cable Plug Typical 2508

Enclosure, Body Material

  • Main Valve: 316Ti Stainless Steel 1.4571
  • Main Valve: Aluminum Ematal Coated
  • Pilot Valve: Stainless Steel

Environmental Protection

  • IP65

Flow Rate

  • QNn-value Air (Aluminum): 1,500 to 2,100 L/minute
  • QNn-value Air (Stainless Steel): 1,770 to 1,980 L/minute

Materials of Construction

  • Threaded Socket Material: Aluminum
  • Threaded Socket Material: Stainless Steel

Media

  • Lubricated Compressed Air
  • Neutral Medium
  • Non-Lubricated Compressed Air

Mounting Position

  • Preferably with Actuator Upright

Nominal Power

  • 2 W

NPT Connection

  • 1/4" NPT Female

Nut & Bolt Material

  • Cap Nut: Stainless Steel

Operating Voltages

  • 24 Vdc
  • 24-230 V at 50/60 Hz

Orifice Size

  • Aluminum: 0.35" (9 mm)
  • Stainless Steel: 0.315" (8 mm)

Override

  • Manual Override

Pressure Range

  • Aluminum - psi: 36.26 to 145 (kPa: 250 to 1,000, bar: 2.5 to 10)
  • Stainless Steel - psi: 43.51 to 145 (kPa: 300 to 1,000, bar: 3 to 10)

Process Temperature

  • -30° to 80° C (-22° to 176° F)

Response Time

  • Closing: 14 to 74 ms
  • Opening: 12 to 18 ms

Seat / Seal Material

  • Seal (Stainless Steel): Polyurethane (PU)
  • Seal: FPM
  • Seal: NBR

Solenoid Type

  • 3/2-Way
  • 5/2-Way
  • 5/3-Way

Tolerance

  • Voltage: 10 %
