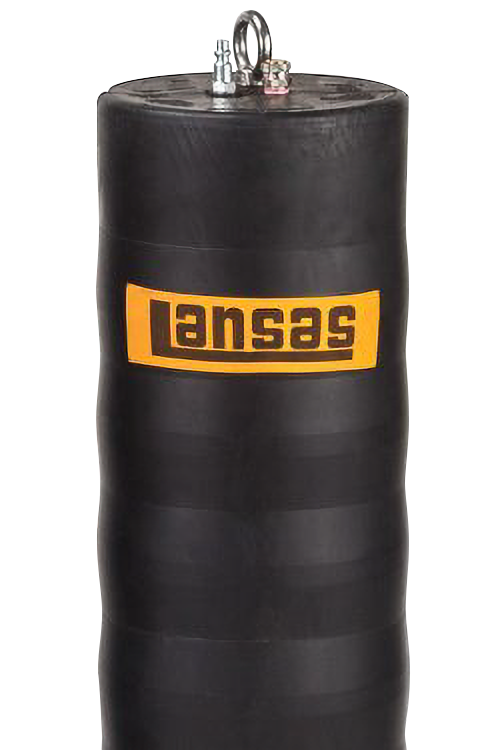

5 Line Multi-size Front and Back Plugs
Brand: Lansas ProductsThe new 5-LINE Molded Front and Back Plugs are better in a number of ways.
The most noticeable difference is in the very unique new design featuring the LANSAS proprietary “Flat-Rib” design which holds 60% more back pressure than standard O-ring ribbed plugs.
We are using our improved reformulated rubber and laying the fabric in a way that the plugs can get the widest range of use on the market today.
As with all other LANSAS products included in the 5-LINE group, our 5-LINE Multi-Size Front and Back plugs are equipped with the LANSAS RP2 - Rupture Protection.
We trust in this design enough to back it with the 5-LINE 5 YEAR WARRANTY.
If you are looking for the most ROI look no further than the LANSAS 5-LINE where once again we show LANSAS is BETTER BY DESIGN since 1955.
Specifications
Brand
Plug Type
- Back Plug
- Front Plug
Minimum Pipe Diameter
- 7.4"
- 9.1"
- 10.6"
Maximum Pipe Diameter
- 16.25"
- 18.25"
- 24.25"
Required Inflation Pressure
- 30 psi
Maximum Back/Test Pressure
- 15 psi
Bypass Size
- N/A
- 3/4" + 1/4"
Length
- 32.0"
- 35.0"
- 41.5"
Deflated Diameter
- 7.3"
- 9.0"
- 10.5"
Weight
- 14 lb
- 21 lb
- 30 lb
- 26 lb
- 37 lb
