X90 Mobile Control System

Brand: B&R Industrial Automation Inc
Add Product to My Catalog

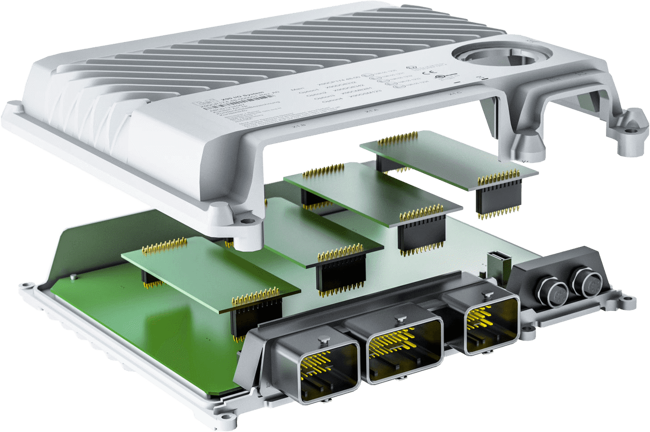

B&R continues to open up new possibilities in mobile automation with its innovative X90 mobile controllers.

The comprehensive set of standardized components is perfect for implementing flexible automation concepts.

The heart of the X90 mobile control system is a powerful ARM processor and multifunction I/O channels.

Basic features include interfaces for CAN, Ethernet and the real-time POWERLINK bus system.

The B&R Hypervisor can turn your PC into a high-end embedded controller with processor speeds up to 2.8 GHz.

1 - 12 of 31 Part Numbers
X67ACTQ12
X67ACTQ12
X67 torque wrench 0.6 Nm for X67 male M12 connectors, for hex-head connectors
X67ACTQMX
X67ACTQMX
X67 torque wrench set, for X67 M8 and M12 connectors, for hex-head connectors
X67HB8880.L12
X67HB8880.L12
X67 8-port industrial hub (layer 2), 10/100 Mbit/s with autonegotiation, automatic MDIX, 8x M12, 8-32 VDC
X90AC-BB.12-00
X90AC-BB.12-00
X90 mobile 120, breakout box template and cable adapter for X90AC-BB.17-00 breakout box, for development and tests
X90AC-BB.17-00
X90AC-BB.17-00
X90 mobile 170, breakout box for development and tests
X90AC-RP-SC-00
X90AC-RP-SC-00
X90 service access cap replacement part set 1x silicone profile gasket, orange 1x silicone profile gasket, yellow 1x service access cap with ejection function
X90AISG0.02-00
X90AISG0.02-00
X90 mobile option board, strain gauge module for 2 DMS full-bridge strain gauges, 24-bit converter resolution, 5 kHz input filter
X90AO410.04-00
X90AO410.04-00
X90 mobile option board AO, 4 analog outputs, 12-bit, optional 0 to 10 V / 0 to 20 mA, optional DI, 9 to 32 VDC, sink/source, configuration using software
X90AO410.08-00
X90AO410.08-00
X90 mobile option board AO, 8 analog outputs, 12-bit, optional 0 to 10 V / 0 to 20 mA, optional DI, 9 to 32 VDC, sink/source, configuration using software
X90AT910.04-00
X90AT910.04-00
X90 mobile option board AT, 4 resistance measurement inputs, Pt1000, optional DI, 9 to 32 VDC, sink/source, optional AI, 0 to 10 V / 0 to 32 V, 0 to 20 mA, optional PWM output, 9 to 32 VDC, 10 mA, 1 kHz, configuration using software
X90AT910.08-00
X90AT910.08-00
X90 mobile option board AT, 8 resistance measurement inputs, Pt1000, optional DI, 9 to 32 VDC, sink/source, optional AI, 0 to 10 V / 0 to 32 V, 0 to 20 mA, optional PWM output, 9 to 32 VDC, 10 mA, 1 kHz, configuration using software
X90BC124.32-00
X90BC124.32-00
X90 mobile 120 bus controller, 1 CANopen on CMC header, 32 multifunction I/Os, die-cast aluminum housing
1 - 12 of 31 Part Numbers
