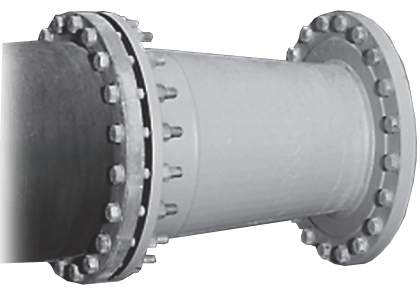

Metso Concentric Rubber Lined Steel Reducer

Concentric Rubber Lined Steel Reducer

Brand: Valmet
Add Product to My Catalog

Rubber lined steel reducers provide a transition between pipes or hoses of different diameters to compensate for changes in flow velocity.

Trellex Rubber Lined Steel Reducers are fabricated from rolled and welded steel sheets, lined with T50 rubber.

1 - 12 of 19 Part Numbers
SH-489132
SH-489132
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 102 / 76
SH-489133
SH-489133
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 127 / 102
SH-489134
SH-489134
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 152 / 102
SH-489135
SH-489135
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 152 / 127
SH-489136
SH-489136
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 204 / 127
SH-489137
SH-489137
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 204 / 152
SH-489138
SH-489138
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 254 / 152
SH-489139
SH-489139
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 254 / 204
SH-489140
SH-489140
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 305 / 204
SH-489141
SH-489141
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 305 / 254
SH-489142
SH-489142
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 355 / 254
SH-489143
SH-489143
  • Internal Diameter (I.D.) in mm / Internal Diameter (I.D.) in mm - 355 / 305
1 - 12 of 19 Part Numbers

View_Details

Specifications

Brand

Enclosure, Body Material

  • Rubber Lined
  • Steel

Flange Size - 10” (DN 250)

  • 10" (DN 250) - 150# ASME B16.5
  • 10" (DN 250) - PN 10 (DIN 2501)

Flange Size - 12” (DN 300)

  • 12" (DN 300) - 150# ASME B16.5
  • 12" (DN 300) - PN 10 (DIN 2501)

Flange Size - 14” (DN 350)

  • 14" (DN 350) - 150# ASME B16.5
  • 14" (DN 350) - PN 10 (DIN 2501)

Flange Size - 16” (DN 400)

  • 16" (DN 400) - 150# ASME B16.5
  • 16" (DN 400) - PN 10 (DIN 2501)

Flange Size - 18” (DN 450)

  • 18" (DN 450) - 150# ASME B16.5
  • 18" (DN 450) - PN 10 (DIN 2501)

Flange Size - 20” (DN 500)

  • 20" (DN 500) - 150# ASME B16.5
  • 20" (DN 500) - PN 10 (DIN 2501)

Flange Size - 24” (DN 600)

  • 24" (DN 600) - 150# ASME B16.5
  • 24" (DN 600) - PN 10 (DIN 2501)

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150# ASME B16.5
  • 4" (DN 100) - PN 10 (DIN 2501)

Flange Size - 5” (DN 125)

  • 5" (DN 125) - 150# ASME B16.5
  • 5" (DN 125) - PN 10 (DIN 2501)

Flange Size - 6” (DN 150)

  • 6" (DN 150) - 150# ASME B16.5
  • 6" (DN 150) - PN 10 (DIN 2501)

Flange Size - 8” (DN 200)

  • 8" (DN 200) - 150# ASME B16.5
  • 8" (DN 200) - PN 10 (DIN 2501)

Operating Pressure

  • psi: 145 (kPa: 1,000, bar: 10)

Proof Pressure

  • 1.5 x Working Pressure

Documentation

Data Sheets
