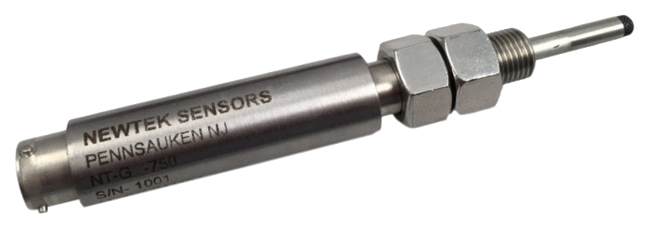

GL-750 Series Gage Head LVDTs
Brand: Newtek Sensors SolutionsThe NewTek GI Series Gage Head LVDTs are designed for a loop-powered 4-20 mA circuit, and have excellent linearity, high sensitivity and high resolution. They permit highly accurate readout and recording of an output signal directly without auxiliary signal conditioning electronics.? These GI Series spring-loaded LVDTs are designed for a wide range of position measurement and dimensional gaging applications and available in ranges of 0.10 inch (2.5mm) to 4 inches (100mm).
Features- 4-20 mA Spring loaded probe
- Welded 3/4 inch hermetically sealed steel housing
- Measurement ranges from 0.10 to 4 inches
- Linearity ±0.15% of Full Range Typical
- Shock and vibration tolerant
- Choice of probe contact tips
- Standard and custom models available
- Cable runs can be hundreds of feet
1 - 10 of 10 Part Numbers
NT-GI-750-100
- Nominal Range (Inches) - 0.10
- Options - None
NT-GI-750-100-M
- Nominal Range (Inches) - 0.10
- Options - Calibration In Millimeters
NT-GI-750-200
- Nominal Range (Inches) - 2.0
- Options - None
NT-GI-750-200-M
- Nominal Range (Inches) - 2.0
- Options - Calibration In Millimeters
NT-GI-750-250
- Nominal Range (Inches) - 0.25
- Options - None
NT-GI-750-250-M
- Nominal Range (Inches) - 0.25
- Options - Calibration In Millimeters
NT-GI-750-400
- Nominal Range (Inches) - 4.0
- Options - None
NT-GI-750-400-M
- Nominal Range (Inches) - 4.0
- Options - Calibration In Millimeters
NT-GI-750-500
- Nominal Range (Inches) - 0.50
- Options - None
NT-GI-750-500-M
- Nominal Range (Inches) - 0.50
- Options - Calibration In Millimeters
1 - 10 of 10 Part Numbers
Specifications
Brand
Input Power
- 11-28 Vdc (24 Vdc Nom.)
Full Scale Output
- 4-20 mA
Linearity
- < ± 0.25 % Full Range Max. (± 0.1 % Max. Optional)
Hysteresis
- < 0.01 % of Full Range Typical
Repeatability
- < 0.01 % of Full Range Typical
Operating Temperature
- 0° to 185° F (-20° to 85° C)
Thermal Coefficient
- < -0.014 %/°F (< -0.025 %/°C) of Full Range
Humidity
- 90 % RH, 240 hours
Shock Survival
- 100 g, 11 ms
Vibration
- 20 g to 2 kHz
Housing
- Corrosion-Resistant Nickel-Iron Alloy
Core
- Hi-Permeability Nickel-Iron Alloy
Magnet Wire
- Film Insulated Copper
Connector
- PT02A-10- 6P
Probe
- AGD #9 Contact Tip
- Pinch and Roller Alignment
- Dimensional Gaging
- Factory Automation
- Materials Testing
- Packaging Equipment
- TIR Measurements
