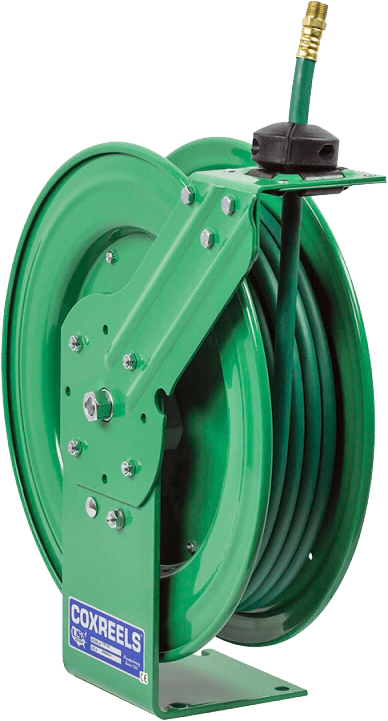

Spring Driven Reels | Nitro-Pro Series

Brand: COXREELS®
Add Product to My Catalog

COXREELS® Nitro - Pro® Series spring driven hose reels are the only nitrogen hose reels specifically engineered, tested and approved for use with nitrogen tire inflation systems.

These professional-grade specialty reels feature compact space-saving size and heavy duty construction for flexible installation and long-lasting performance.

This reel is specifically designed to reduce workplace accidents and increase operator safety.

Swivel
  • Nitrogen quality seals in the machined from solid brass 90°full-flow NPT swivel.
  • Swivel Seals: Nitrile

Design & Structure
  • Designed for nitrogen tire inflation system.
  • Guide arm adjusts to wall, floor, vehicle & overhead positions.
  • Green nitrogen hose & hose stop to adjust lead length.

Retract
  • Enclosed factory tuned & matched cartridge-style spring motor.
  • Non - corrosive stainless steel spring, pawl & zinc plated ratchet.
  • Multi - position lock ratchet mechanism secures hose at desired length.
Features
  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide .
  • SWIVEL - Nitrogen quality seals in the machined solid from brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
  • MULTI-POSITION GUIDE ARM - Versatile aluminum guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting special "Nitrogen green" proprietary CPC™ powder coat finish, adjustable solid rubber hose stop, green nitrogen hose, and sturdy permanently lubricated precision bearings.

Specifications

Brand

Maximum PSI

  • 300

Inside Diameter

  • 3/8"

Hose Length

  • 50 ft

Optional Hose

  • Yes

EZ - Coil

  • Optional
