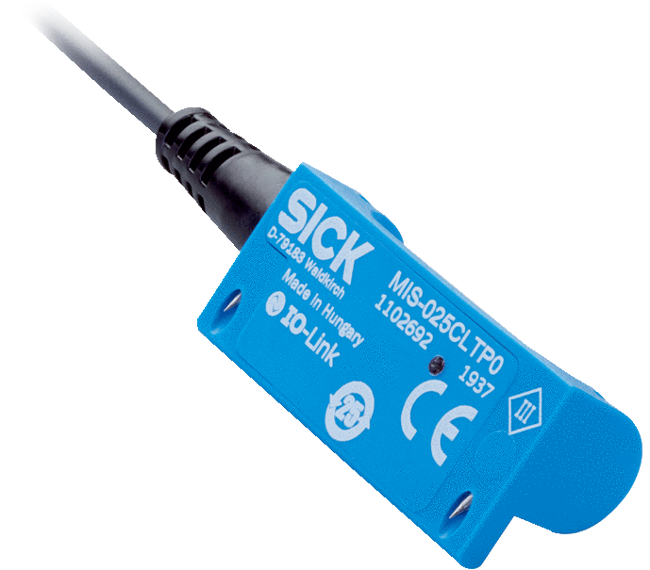

MIS Magnetic-Coded Identification

Brand: Sick AG

The MIS is a magnetic-coded identification sensor that is used to identify magnetic-coded tags.

The MIS is used in conjunction with magnetic-coded tags and optionally a mounting bracket from SICK.

The tag number can either be output via an analog voltage, a current output or via IO-Link.

The analog output is configured by default with a 16-step division so that 15 magnetic-coded tags can be differentiated.

In addition to identification, the presence of tags can be passed on to the control via a digital switching output.

Due to its function, the MIS is particularly well-suited for simple identification tasks as are used in tool or format changes, for example.

Thanks to the pre-coded magnetic tags, programming effort is reduced since the tags do not first have to be written.

The sensor and the tags simply have to be attached to the desired positions, then they’re ready to go.
Features
  • Very easy mounting and commissioning
  • High repeatability
  • A second sensor for checking for presence is not needed
  • No programming effort since the tags are magnetic-coded
  • The rugged mounting holds the sensor in the required position, even when exposed to shock and vibration, and increases reliability

1 - 1 of 1 Part Numbers
1102692
1102692
Type: MIS-025CLTP0, Magnetic-coded identification
1 - 1 of 1 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC

Scanning Range

  • 0 to 3 mm, Distance Between Sensor and Tag

Number of Different Magnetic-Coded Tags

  • 15

Analog Output

  • 4-20 mA
  • 0-10 Vdc

Connection Type

  • 1 x Cable with M8 Male Connector, 4-Pin, 0.3 m

Communication Interface

  • IO-Link
