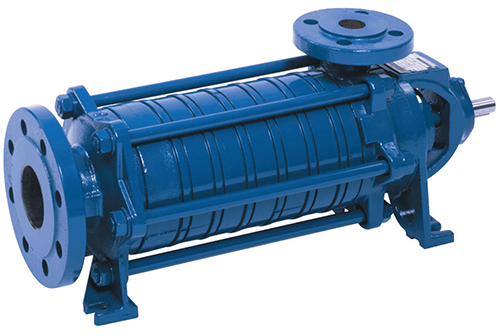

CEH Industrial Process and Chemical Pump
Brand: Flowserve SIHIPumps of the series CEH-X/CEH have a segmental type construction with open vane wheel impellers.
The construction of the CEH pump is a so-called centrifugal combined system.
This combination pump is suited with a centrifugal stage serial connection before the side channel stages in order to obtain a more favorable NPSH.
Features- Problem-free pumping of clean liquids at unfavorable suction side conditions.
- Suitable for positive suction heads below 0.5 m.
- The different material possibilities, uniform dimensions, performance characteristics, and standard exchangeable components make the CEH particularly recommendable for applications in the pharmaceutical, chemical/petrochemical, plastic, and oil markets.
- Low NPSH and positive suction head make the CEH-X/CEH very suitable for the pumping of liquefied gasses and liquids under vapor pressure like condensate, refrigerant, boiler feed water or LPG.
Specifications
Brand
Casing Pressure
- Up to 40 bar
Flow Rate
- Up to 35 m³/h
Head
- Up to 354 m
Materials
- Grey Cast Iron, Nodular Iron, Stainless Steel
Shaft Seals
- Gland packing, mechanical Seal, magnetic coupling
Size Range
- 6 Sizes / up to 8 Stages
Speed
- Maximum 1800 rpm
Temperature
- Maximum 180° C
