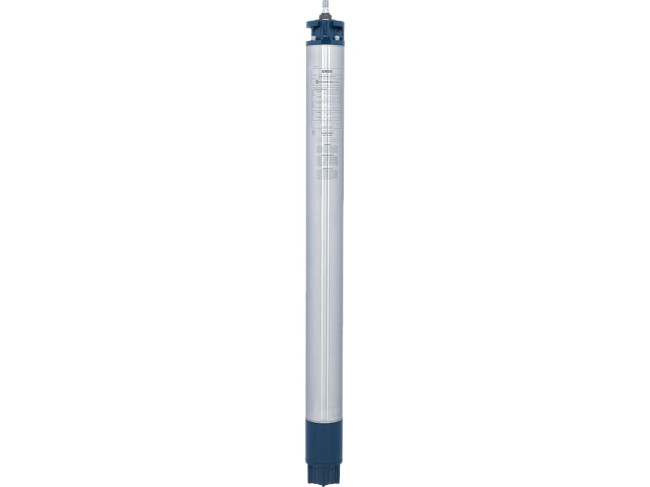

6-Inch Encapsulated DR56 Dual-Rated Motor

Brand: Franklin Electric Co, Inc.

Pumping applications are rapidly changing - and Franklin's DR56 6-inch dual-rated-motor was designed and built in response to many requests for a motor that can operate effectively under these evolving application demands.

The DR56 6-inch dual-rated-motor utilizes our premium encapsulation process to allow continuous operation in water temperatures of up to 50 °C (provided minimum allowable rates of flow past the motor are maintained).

Franklin's DR56 is the right choice for your demanding, high temperature 6 inch well applications.

Features

Up to 122 °F (50 °C) ambient temperature.
Hermetically sealed stator
Innovative high temperature winding encapsulation system
Kingsbury-type (10,000 lbs) thrust bearing
FES91 exclusive water-soluble bearing lubrication
Double-flange NEMA mounting for ease of handling and pump mounting
Splined stainless steel shaft for maximum shaft/coupling contact
Full 60 Hz 3,450 rpm design point for superior pump performance
Sand Fighter™ sealing system
Subtrol™ heat sensor standard
Franklin Electric’s exclusive “Water-Bloc™” lead connection
316 stainless steel and Y- designs available (consult factory for more details)
NSF/ANSI 61 Certified
