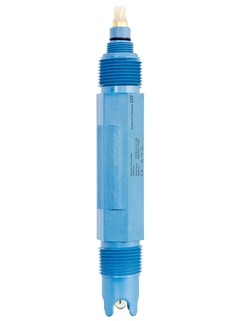

Analog pH sensor Orbipac CPF81
Brand: Endress+Hauser Group Services AG
Orbipac CPF81 is the analog simple solution for pH measurement in harsh environments. It measures reliably and accurately even in fibrous media and at high flow rates. With its integrated assembly, the electrode saves you space and time during flow or immersion installation.Features
- Suitable for flow and immersion installation
- Long time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2-or CN-
- Robust polymer housing protects against mechanical damage
- Optional flat membrane suitable for high flow rates, fibrous media, and mining applications
Specifications
Measuring principle
- Potentiometric
Application
- Water, waste water, process, galvanic
Characteristic
- Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4". Optional with amplifier.
Measuring range
- pH 0-14
Design
- Compact electrode in PPS housing with NPT3/4" process connection.
Material
- PPS / glass / PTFE
Dimension
- Length: 120´mm
- (4.68 inch)
Process temperature
- -10°C - 110°C
- (14°F - 230°F)
Process pressure
- max. 10 bar
- (145 psi)
Temperature sensor
- Optional with integrated Pt100.
Ex certification
- ATEX
- FM
Connection
- TOP68 connection head or fixed cable
Ingress protection
- IP68
- Water
- Waste Water
- Process
- Galvanic
