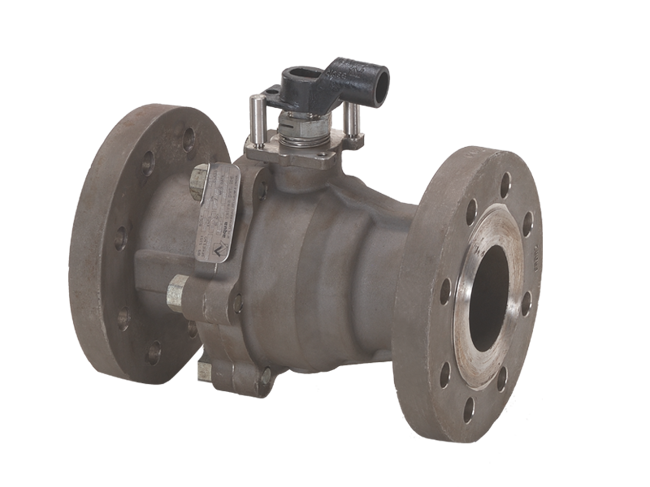

75R2/75F2 Series Ball Valve
Brand: Belgaum Aqua Valves Pvt. Ltd.These High Performance floating design Ball Valves have the following advantages:
- Superior sealing: Seat to ball sealing is further improving by allowing both the ball and seat to move. This provides a leak tight seal even at low pressures. The floating ball increases compression against the seat as system pressure increases.
- Self-Cleaning: The floating design allows entrapped fluid to be continually drain from the valve cavity. The internal washing action keeps the seats free of contaminated ingredients and guarantee superior valve performance.
- Self-adjusting: The Seat and ball interface allows the seat to expand and contract in order to maintain proper ball contact at all times thus resulting in self adjustment.
- Smooth operating & reduced wear: There is reduced friction on the seat when it comes in contact with the ball during opening and closing and thus enhances the valve life.
- Maintenance free live loaded double sealing stem packing ensures high cycle’s life and positive sealing.
- Blow-out Proof Stem
- ISO5211 Mounting Pad Allows for mounting of actuator
Specifications
Valve Type
- Floating Design Ball Valve
Body Type
- 2pc
Seat Type
- Soft / Metal
End Connection
- Flanged
Size Range
- 15NB to 300NB for reduced port/full port
Pressure Rating
- Class 300
Seat Leakage
- Class VI- soft seat
- Class V-Metal seat
Conformity To Codes & Standards
- General Design: BS EN ISO -17292/API-608/API-6D
- Valve Dimensions: ASME B 16.10 / B 16.5.
- Valve inspection & testing : EN 12266-1
