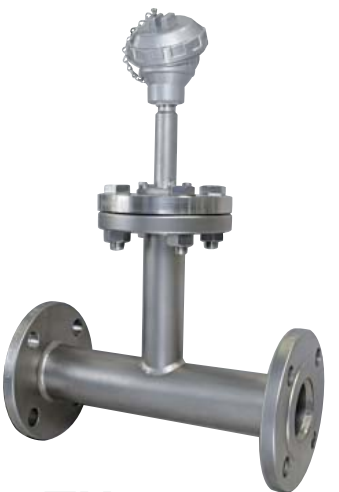

TH-1200 Thermal Flowmeter
Brand: Tokyo Keiso Co, LtdTH-1200 is a flange connected detector. Perfect fit on process piping. 6 sizes from 50 to 150 mm available. The temperature well (protective tube) will be provided with a temperature sensor when electrolytic polishing inside nozzle is required.
Specifications
Brand
Environmental Protection
- IP65
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - 150# ANSI
- 2-1/2" (DN 65) - JIS 10K
Flange Size - 2” (DN 50)
- 2" (DN 50) - 150# ANSI
- 2" (DN 50) - JIS 10K
Flange Size - 3” (DN 80)
- 3" (DN 80) - 150# ANSI
- 3" (DN 80) - JIS 10K
Flange Size - 4” (DN 100)
- 4" (DN 100) - 150# ANSI
- 4" (DN 100) - JIS 10K
Flange Size - 5” (DN 125)
- 5" (DN 125) - 150#
- 5" (DN 125) - JIS 10K
Flange Size - 6” (DN 150)
- 6" (DN 150) - 150# ANSI
- 6" (DN 150) - JIS 10K
Pipe Size
- 2" to 6" (50 to 150 mm)
Seat / Seal Material
- Seal: FPM
Sensor, Probe Material
- Sensor: 304 Stainless Steel
- Sensor: 316 Stainless Steel
- Sensor: 316L Stainless Steel
