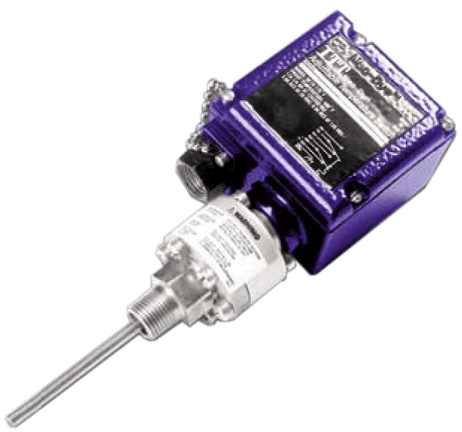

Neo-Dyn Temperature Switch, 100T*3 Series

100T*3 Series Temperature Switch

Brand: ITT Neo-Dyn
Add Product to My Catalog

Direct mount adjustable temperature switch with efficient Nega-Rate Belleville spring mechanism and saturated vapor sensor for quick response.
Features
  • Snap action electrical switch recognized by Underwriters’ laboratories, Inc. and CSA International
  • 1/2" NPT female conduit connection with terminal block
  • 1/2" Male NPT direct mount

View_Details

Specifications

Brand

Adjustment Type

  • Concealed Wrench Flat Adjustment with Range Scale

Ambient Temperature Range

  • -40° to 82° C (-40° to 180° F)

Approvals & Certifications

  • CE
  • CSA
  • IEC 61508
  • SIL

Deadband, Approximate - Bottom of Range

  • 11° to 17° C (52° to 62° F)
  • -7.2° to -1.1° C (19° to 30° F)

Deadband, Approximate - Top of Range

  • -16° to -15° C (3° to 5° F)
  • 2° to 3° C (35.6° to 37.4° F)

Electrical Connectors

  • 1/2" NPT Female Conduit Connection with Terminal Block
  • 5-Pin Brad Harrison Connector

Electrical Contacts

  • Gold
  • Normally Closed
  • Normally Open

Electrical Rating

  • 0.5 A Resistive at 125 Vdc - DPDT
  • 0.5 A Resistive, 0.04 A Inductive at 125 Vdc - SPDT
  • 1 A Resistive, 0.5 A Inductive at 125 Vdc - DOUBLE BREAK
  • 1/2 hp at 250 Vac - DOUBLE BREAK
  • 1/4 hp at 125 Vac - DOUBLE BREAK
  • 1/4 hp at 250 Vac - SPDT
  • 1/8 hp at 125 Vac - SPDT
  • 11 A, 1/4 hp at 125/250 Vac - DPDT
  • 15 A at 125/250 Vac - SPDT, DOUBLE BREAK
  • 5 A Resistive, 3 A Inductive at 28 Vdc - DPDT

Enclosure Finish

  • Epoxy Paint

Environmental Protection

  • NEMA 13
  • NEMA 3
  • NEMA 3R
  • NEMA 3S
  • NEMA 4
  • NEMA 4X

Indication

  • Neon Light

Maximum System Pressure

  • psig: 1,500 (kPa: 10,340, bar: 103.4)

NPT Connection

  • 1/2" NPT Male

Process Connection Material

  • Steel

Proof Pressure

  • psig: 2,250 (kPa: 15,510, bar: 155.1)

Screw Material

  • Stainless Steel - Exterior

Seat / Seal Material

  • Seal: Teflon
  • Seal: Viton

Sensor, Probe Material

  • Stainless Steel

Set Point - Decreasing

  • -56° to 257° C (-69° to 495° F)

Set Point - Increasing

  • -45° to 260° C (-50° to 500° F)

Switch Type

  • Double Break
  • DPDT
  • SPDT

Temperature Range

  • Proof Temperature: 121° to 315° C (250° to 600° F)

Wetted Materials

  • Steel Port with Stainless Steel Probe
  • Teflon Seal
  • Viton Seal
