Automation Products Ultrasonic Sensor, MNU Series

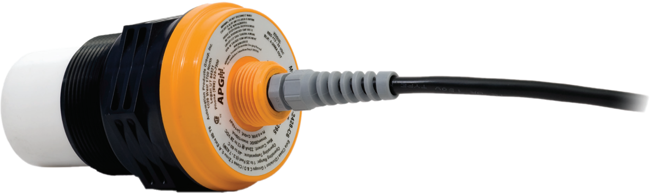

MNU Remote Monitoring Ultrasonic Level Sensor

Brand: Automation Products Group - APG
Add Product to My Catalog

Automation Products Ultrasonic Sensor, MNU Series Automation Products Ultrasonic Sensor, MNU Series Automation Products Ultrasonic Sensor, MNU Series
The MNU Series Sensors utilize standard Modbus RTU protocol (RS-485). The MNU is designed to work as a slave device. With the ability to measure volume and distance, the MNU is the ideal sensor for your application.
Features

  • Ranges from 4 inch to 40 feet
  • Self-contained Sensor
  • RS-485 Modbus RTU Interface
  • Measure Distance, Level, or Volume
  • Internal Temperature Compensation



1 - 12 of 1,003 Part Numbers
MNU-2424-C6
MNU-2424-C6
APG MNU Series Modbus Ultrasonic Level Sensor, 1-25' Range, 2" MNPT, Modbus RS-485 Output, 6' Cable
  • Operating Range:
    • MNU-2424: 1 - 25 ft (0.30 - 7.62 m)

  • Accuracy: ±0.25% of Detect Range
  • Programming: Interface with RS-485, User Selected Units.
  • Output:
    • Modbus RTU (RS-485)

  • Electrical Connection: 4 Conductor Shielded Cable, 6 ft
  • Temperature Range:
    • -30º - +140ºF (-34º - +60ºC)

  • Materials of Construction:
    • PC/PBT blend upper housing
    • Transducer Type: Ceramic, PVDF faced

  • NEMA 6P
MNU-2424-CL101
MNU-2424-CL101
  • Base Model - 2424
  • Cable Connection - 101 Six Feet Cable Pigtail
MNU-2424-CL106
MNU-2424-CL106
  • Base Model - 2424
  • Cable Connection - 106 Six Feet Cable Pigtail
MNU-2424-CL11
MNU-2424-CL11
  • Base Model - 2424
  • Cable Connection - 11 Six Feet Cable Pigtail
MNU-2424-CL111
MNU-2424-CL111
  • Base Model - 2424
  • Cable Connection - 111 Six Feet Cable Pigtail
MNU-2424-CL116
MNU-2424-CL116
  • Base Model - 2424
  • Cable Connection - 116 Six Feet Cable Pigtail
MNU-2424-CL121
MNU-2424-CL121
  • Base Model - 2424
  • Cable Connection - 121 Six Feet Cable Pigtail
MNU-2424-CL126
MNU-2424-CL126
  • Base Model - 2424
  • Cable Connection - 126 Six Feet Cable Pigtail
MNU-2424-CL131
MNU-2424-CL131
  • Base Model - 2424
  • Cable Connection - 131 Six Feet Cable Pigtail
MNU-2424-CL136
MNU-2424-CL136
  • Base Model - 2424
  • Cable Connection - 136 Six Feet Cable Pigtail
MNU-2424-CL141
MNU-2424-CL141
  • Base Model - 2424
  • Cable Connection - 141 Six Feet Cable Pigtail
MNU-2424-CL146
MNU-2424-CL146
  • Base Model - 2424
  • Cable Connection - 146 Six Feet Cable Pigtail
1 - 12 of 1,003 Part Numbers

View_Details

Specifications

Brand

Accuracy

  • ± 0.25 % of Span

Communication

  • Modbus RTU (RS-485)

Electrical Connectors

  • 4-Conductor Twisted-Pair Cable
  • 4-Pin M12 Micro Connector

Enclosure, Body Material

  • PC/PBT Blend Upper Housing

Environmental Protection

  • IP67
  • NEMA 6P

NPT Connection

  • 1" NPT Male
  • 2" NPT Male
  • 3" NPT Male

Operating Temperature - Electronics

  • -34° to 60° C (-30° to 140° F)

Resolution

  • 0.1" (2.5 mm)

Response Time

  • Programmable

Sensing Range

  • 4" to 40 ft (0.10 to 12.19 m)
  • Feet: 0 to 10
  • Feet: 10 to 25
  • Feet: 25 to 35
  • Feet: 35 to 50
  • Meters: 0 to 3.05
  • Meters: 10.66 to 15.24
  • Meters: 3.05 to 7.62
  • Meters: 7.62 to 10.66

Sensor, Probe Style

  • Ultrasonic

Wetted Materials

  • Ceramic, PVDF Faced Transducer
  • PC/PBT Blend Upper Housing

Documentation

Data Sheets

Product Manuals

Product Catalog
