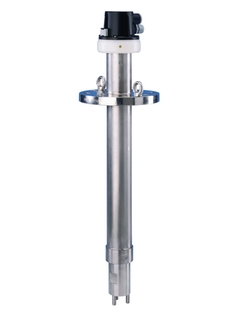

Immersion assembly Dipfit CPA140
Brand: Endress+Hauser Group Services AG
The Dipfit CPA140 immersion assembly is designed for all demanding applications where aggressive media are involved. With its flange connection, Dipfit is installed safely in the process and offers space for three sensors. Its bayonet lock offers you easy sensor installation even in sticky media or media containing solid particles, thus saving time for maintenance and recalibration.Features
- Simple installation and removal of the electrode holder thanks to bayonet lock
- Flexible connection to the process by means of various flanges (DIN, ANSI, JIS)
- Less condensation due to a Goretex filter
- Reduces installation effort by providing 3 mounting positions for 120 mm sensors plus a cleaning unit
Specifications
Measuring principle
- Potentiometric
Application
- Chemical industry, power stations and incinerator plants, metal extraction and metal processing
Installation
- Immersion assembly
Characteristic
- Closed tank
Design
- Bayonet technology, 3 electrode installation locations, 120 mm electrodes, integrated spray cleaning CPR31
Material
- Immersion tube, sensor holder:
- PVDF or stainless steel 1.4404
- O-rings: EPDM, VITON, Chemraz or Fluoraz
Dimension
- Immersion depth: 500 to 2500 mm (19.7 to 98.4 inch), special lengths on request
Process temperature
- Max. 150 °C (302 °F)
Process pressure
- Max. 10 bar (145 psi)
Connection
- Pressurized flange DN80/PN16, ASME 3" lbs150, JIS 10K80A
Additional certifications
- Material certification 3.1B EN 10204
- Chemical Industry
- Petrochemical Industry
- Life Sciences
- Power Plants & Waste Incinerating Plants
- Extractive Metallurgy & Metal Processing
