Digital non-glass pH sensor Ceramax CPS341D

Digital non-glass pH sensor Ceramax CPS341D

Brand: Endress+Hauser Group Services AG
Add Product to My Catalog

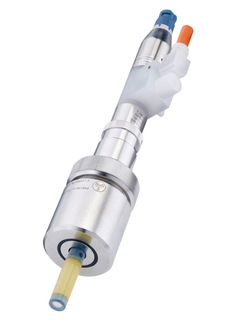

Digital non-glass pH sensor Ceramax CPS341D Digital non-glass pH sensor Ceramax CPS341D CPS341D_Ceramax_02s_LOS.png cps341d_ceramax seitlich.png cps341d_ceramax gerade.png CPS341D_Detail_01.png
Ceramax CPS341D is the long runner for hygienic applications in food and life sciences industries. The sensor guarantees long-term stability and lowest maintenance wherever it is applied. Thanks to Memosens digital sensor technology, CPS341D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.Features
  • Long-term stability over many years
  • Hygienic design: Suitable for cleaning in place (CIP) and sterilization in place (SIP)
  • High mechanical stability due to pH-sensitive enamel on a steel carrier
  • Insensitive to soiling thanks to large pH measuring surface
  • Maximum process safety through non-contact inductive signal transmission
  • Enables predictive maintenance due to storage of sensor and process-specific data
  • Reduced operating costs due to minimized process downtime and extended sensor lifetime

Specifications

Brand

Measuring principle

  • Potentiometric

Application

  • Food production, beverage production, quality control, pharmaceutical industry, biotechnology

Characteristic

  • Electrode with pH sensitive enamel and digital Memosens technology
  • Meets highest demands of measuring accuracy, pressure, temperature, sterility and durability

Measuring range

  • pH -2 to 14

Design

  • Only one shaft length, different hygienic process connectors
  • Integrated temperature sensor

Material

  • pH sensitive enamel on a steel carrier

Dimension

  • Diameter: 12 mm (0.47 inch)
  • Shaft length: 120 mm (4.72 inch)

Process temperature

  • 0 to 140 °C
  • (32 to 280 °F)

Process pressure

  • 0 to 7 bar abs
  • (0 to 101.5 psi)

Temperature sensor

  • NTC 30KΩ

Connection

  • Contactless, inductive, digital connection head with Memosens technology

  • Food Production
  • Beverage Production
  • Quality Control
  • Pharmaceutical Industry
  • Biotechnology

Documentation

Data Sheets

Certifications

Operation Instruction

Safety Instruction
