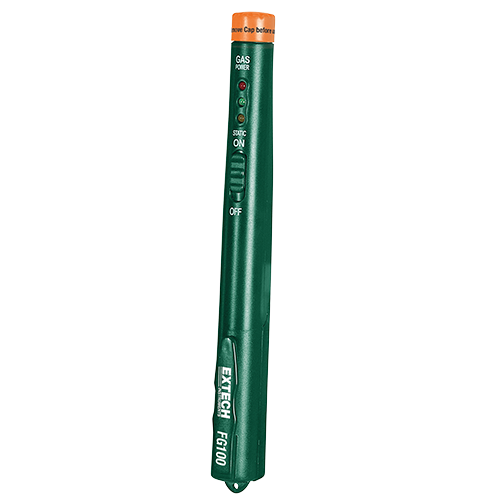

FG100 Combustible Gas Leak Detector

Brand: Extech

The FG100 is a Combustible Gas Leak Detector. Detects combustible gases Liquefied Natural Gas (LNG) and Liquefied Propane Gas (LPG) from 500 to 6500 PPM.

Audible and visual alarms.

Convenient compact portable size with pocket clip.

Continuous operation up to 4 hours. LED indicators for gas leakage and static absorption.

Easy one switch operation.

Complete with 2 AAA batteries.
Features
  • Detects combustible gases - Liquefied Natural Gas (LNG) and Liquefied Propane Gas (LPG) from 500 to 6500ppm.
  • Highly sensitive detection circuitry.
  • Audible and visual alarm.
  • Continuous operation up to 4 hours.
  • LED indicators for gas leakage and static absorption.

Specifications

Brand

Dimensions

  • 7.1" Length, 0.8": Diameter" (180 mm Length, 21 mm Diameter)

Measurement Ranges

  • Propane: 500 to 6500 ppm, Natural Gas: 1000 to 6500 ppm

Operating Conditions

  • 50° to 122° F (10° to 50° C), < 95 % RH, Non-Condensing

Power

  • 2 x 'AAA' 1.5 V Batteries, 200 mA Consumption, 4 Hour Battery Life

Storage Conditions

  • 41° to 131° F (5 to 55° C), < 5 % RH, Non-Condensing

Weight

  • 1.6 oz. (46 g)
