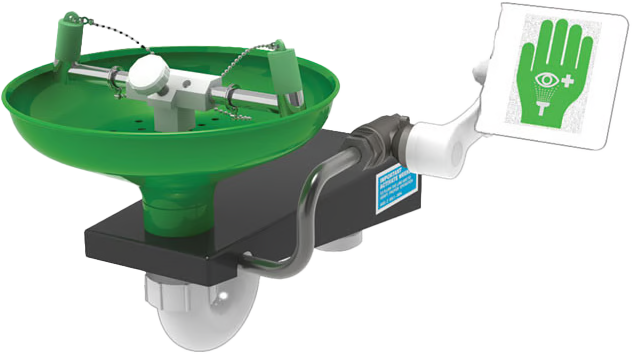

Wall Mounted Hughes Laboratory Eye/Face Wash
Brand: JustriteIdeal for laboratories, schools and general light duty indoor use, this wall mounted eye/face wash unit meets ANSI Z358.1 and EN 15154 standards, and supports OSHA requirements.
Pop-off dust covers protect the twin spray nozzles from contaminants, and are lifted off by the water jets upon operation via the push plate. Includes an inspection record tag for recording test and service history.
Features- Easy-to-clean powder coated stainless steel bowl for excellent corrosion resistance
- Pop-off dust covers protect the twin spray nozzles from contaminants
- Fine mesh strainers and an individual flow controller provide a gentle flow of aerated water and prevent further injury to the eyes
- High-performance quarter-turn ball valves made of 316L stainless steel endure the harshest environments and site conditions
- Includes a universal eye wash sign for enhanced visibility
Specifications
Brand
Color
- Green
Water Inlet Size
- FNPT 1/2”
Operating Pressure
- Minimum: 2 bar g, 29 psi
- Maximum: 6 bar g, 87 psi
Operating Valve Material
- 316L Stainless
Mounting Type
- Wall
Ambient Temperature
- 5° C to 35° C
- 41° F to 95° F
Minimum Flow Rates
- 11.4 Liters/min
