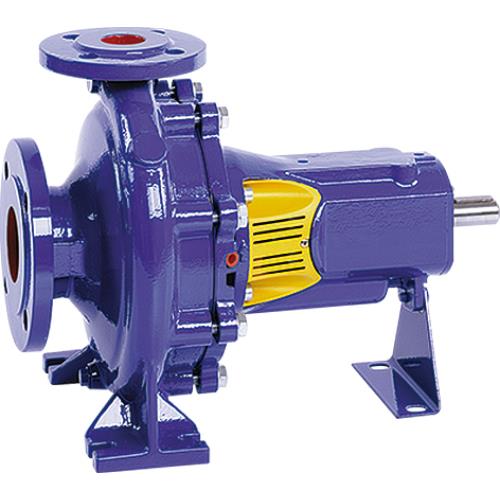

ZLN, ZLK and ZLI Industrial Process Pump
Brand: Flowserve SIHISuitable for temperatures up to 170°C (338°F), this diverse range of general-purpose pumps offers the user a low life-cycle cost solution.
Capital cost, power consumption, maintenance, reliability and waste, have all been considered during the extensive development phase.
Features- Low power consumption.
- We fulfill the standard for the future (eco design requirements of EC 2009/125/EC.
- Optimizes hydraulic grading.
- Full compliance with EN 733.
- Low shaft deflection and thereof longer mechanical seal life.
- For ZLK (closed coupled) no baseplate, coupling and guard needed.
- Saving up to 20% of the cost for purchase, installation, maintenance and repair compared with units on baseplate.
- Only reduced space is required on customer side.
- Extended ball bearing lifetime.
- Long Mean time between Failure.
- Easy on site service.
- No regular maintenance required.
- Simple condition monitoring.
Specifications
Brand
Configurations
- Bare shaft Design ZLN
- Close coupled Design ZLK
- Inline Design ZLI
Design Range
- Sizes from 32 mm (1.25 in) to 300 mm (12 in)
Flow
- Maximum 1800 m³/h (7926 us gpm)
Heads
- Maximum 140 m (459 ft)
Pressure
- To PN 16 (232 psi)
Temperature
- Maximum 170° C (338° F)
