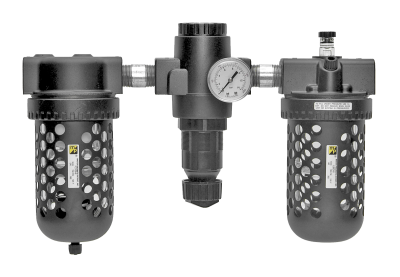

Hi Flow Vanguard FDRL189D 3/4" and 1" (Sight Feed Lubricator)
Brand: Master Pneumatic
Features
- Individual filter (FD100); piston-type regulator (R180M); wick-feed lubricator (L29D).
- Inline mounting.
- 5-µm-rated polyethylene filter element; optional sintered bronze elements.
- Metal bowls with clear nylon sight glass or polycarbonate plastic bowls with steel shatter guard.
- Internal automatic filter drain. Optional manual drain, internal float drain, external Hydro-Jector drain, or Warrior electronic drain.
- Self-relieving regulator; non-relieving optional.
- Pressure gauge.
- NPTF port threads; optional BSPP threads.
Specifications
Brand
Ambient / Media Temperature
- Plastic Bowl, All Drain Types: 40° to 125° F (4° to 52° C)
- Metal Bowl, Manual & Automatic Drains: 40° to 175° F (4° to 79° C)
- Metal Bowl, Float Drains: 40° to 150° F (4° to 66° C)
Material of Construction
- Bowl: Aluminum, Polycarbonate Plastic
- Bowl Ring: Aluminum
- Filter Element: Polyethylene, Sintered Bronze
- Heads: Aluminum
Seal Material
- Nitrile
Inlet Pressure
- 15 to 200 psig (1 to 14 bar)
Outlet Pressure
- Adjustable Up to 100 psig (7 bar)
Pressure Gauge
- 0 to 200 psig (14 bar), 1/4" NPT Gauge Ports Front & Rear
Media
- Compressed Air
