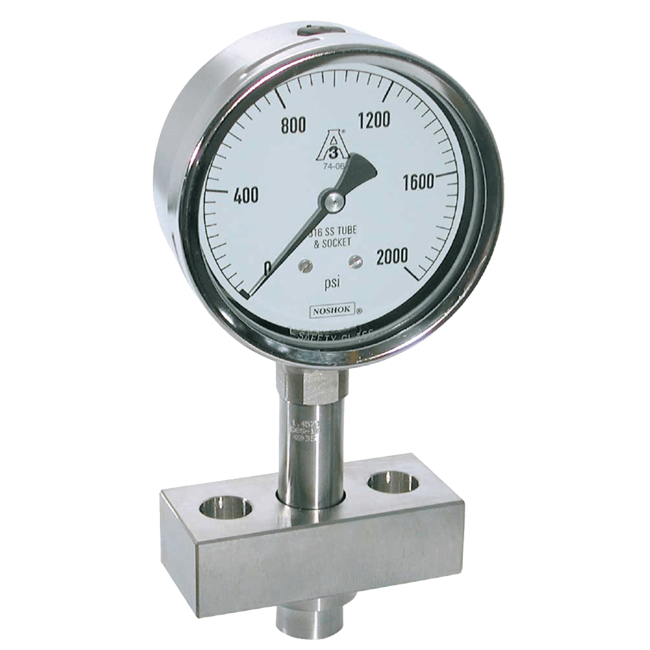

20 Series Homogenizer Sanitary Pressure Gauge
Brand: Noshok, Inc
Features
- 1-1/8" Flange, Fillable Dry or Liquid-filled Gauge
- Ranges from 0 to 1,000 psig through 0 to 15,000 psig
- 4" Gauge Size
- Electropolished Stainless Steel Case
- 316 Stainless Steel Wetted Parts
- Meets Current Standards for 3A and ASME BPE-2009
- C.I.P, S.I.P and Autoclave (Only dry Gauges are recommended for Autoclave)
Specifications
Brand
Accuracy
- ± 1.0 % of Full Scale
Ambient Temperature Range
- -4° to 60° C (25° to 140° F)
Applications
- High Pressure Processing
- Homogenization Systems
- Pasteurization Systems
Approvals & Certifications
- ASME BPE-2009
Diaphragm Material
- 316L Stainless Steel, Electro-Polished to 32 μin Ra or Better
Display
- Aluminum with White Background, Black Print
Enclosure, Body Material
- Electro-Polished 304 Stainless Steel
Fill Material
- Dry
- Glycerine, USP Grade
- Mineral Oil
- Silicone
Flange Size - 1-1/8”
- 1-1/8" - Unrated
Lens
- Laminated Safety Glass
Movement
- Stainless Steel
Options
- Adjustable Pointer
- Maximum
Pressure Range
- bar: 0 to 1,034
- kPa: 0 to 103,421
- psig: 0 to 15,000
Pressure Type
- Gauge
Process Connection Material
- 316L Stainless Steel
Process Temperature
- -20° to 150° C (-4° to 302° F)
Ring Material
- Electro-Polished 304 Stainless Steel
Size
- Gauge: 4"
Storage Temperature
- -4° to 60° C (25° to 140° F)
Wetted Materials
- 316 Stainless Steel Coiled Safety Tube (Measuring Element)
- High Pressure Processing
- Pasteurization Systems
- Homogenization Systems
