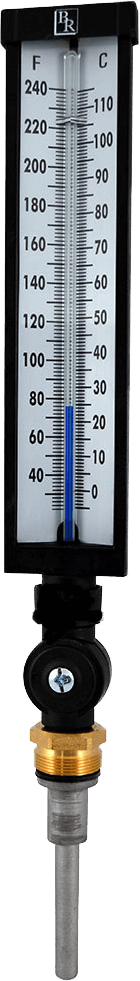

Model BR9A Industrial Thermometer 9″ Scale Adjustable Angle Type
Brand: Blue Ribbon Corp
Features
- Single screw design for easy adjustment and full 360° rotation
- Available in 3.5” and 6” stem lengths
- Blue spirit filled thermometer set inside V-shaped aluminum scale with high-contrast black on white numeric scale for easy reading
- NIST traceable calibration with guaranteed accuracy to ±1 scale division
- Black enamelled die cast aluminum construction with glass front minimizing dirt and dust build up for ranges up to 400 °F - 200 °C
- Optional plastic face
- 1¼–18 UNEF swivel nut connection assembly with tapered bulb chamber for proper well seating
- Available in Straight Form and 90° Back Angle
Specifications
Brand
Stem Length
- 3.5"
- 6"
Temperature Range
- -40-110° F/C
Dial
- 9" (230 mm) aluminum
- 0-120° F/C
- 30-160° F/C
- 30-180° F/C
- 30-240° F/C
- 30-300° F/C
Lens
- Glass
Connection
- 1-1/4-18 UNEF swivel nut 3.5" or 6" stem length
Scale
- Aluminum painted white with black markings
Bulb Chamber
- Tapered cast aluminum with graphite fill
Tube, Sensing Liquid
- Glass, spirit organic fluid
Adjustment
- Fully Adjustable
Accuracy
- ± 1 %
Enclosure Rating
- IP54
