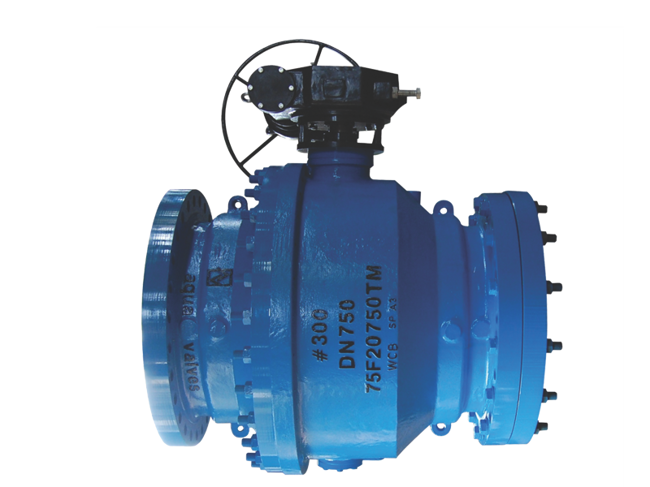

74R2T/74F2T & 75R2T/75F2T Series Ball Valve
Brand: Belgaum Aqua Valves Pvt. Ltd.The trunnion design high performance ball valves use the upper & lower supports to retain the ball under pressure. It allows the valve to be installed in either direction. This valve can be used in applications with reversing flow. Another features of trunnion design is that it allows the ball valve to act as a true union.
This Allows downstream piping to be disconnected under full upstream, pressure (Provide the downstream piping is drained of liquid and that the valve is indeed closed to upstream piping). The tunnion on a two way ball valve supports the ball in much the same way as the stem does on top.
Features- Maintenance free live loaded double sealing stem packing ensures high cycles life and positive sealing.
- Blow-out Proof Stem
- ISO5211 Mounting Pad Allows for mounting of actuator
- Spring Loaded Seat Design
Specifications
Valve Type
- Trunnion Mounted ball valve
Body Type
- 2pc Standard / 3pc Optional
Seat Type
- Spring Loaded Seat design in Soft/Metal Seated
End Connection
- Flanged
Size Range
- 50NB to 750NB
Pressure Rating
- Class 150/300
Seat Leakage
- Class VI- soft seat
- Class V-Metal seat
Conformity To Codes & Standards
- General design: BS EN ISO -17292/API-608/API-6D
- Valve dimensions: ASME B 16.10 / B 16.5.
- Valve inspection & testing : EN 12266-1
