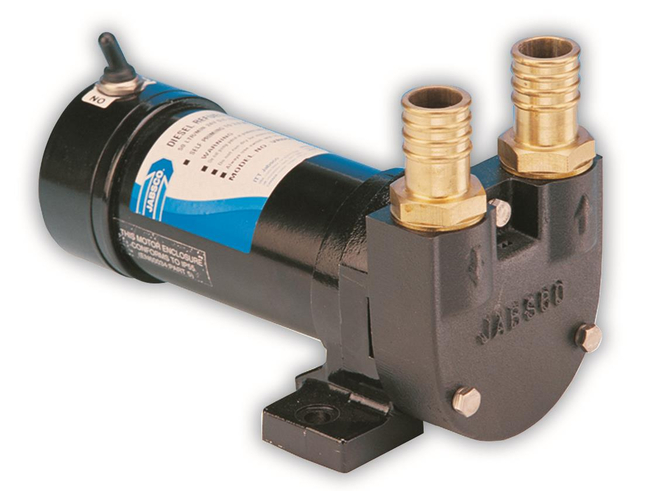

VR050 Series 50 Litre Diesel Refuelling Pump
Brand: Jabsco12/24V Fuel Transfer Pump.
Features- High head capability - 10 metres (32 feet)
- Self priming up to 3 metres (9.6 feet)
- Continuously rated
- Vibration tested
- IP55 protected motor
- 24V version with thermal cut-out protection
- Full range of installation accessories
- Customized kits for OEM customers
1 - 8 of 8 Part Numbers
1 - 8 of 8 Part Numbers
Specifications
Brand
Body Material
- Cast Iron
Duty Cycle
- Continuously Rated up to 3 m (10 ft), Total Head of Diesel Fuel at 40° C (104° F)
Motor Type
- Permanent Magnet, Corrosion Resistant IP55 Protected
Port Type
- 3/4" BSP or 25 mm (1") Hose Adaptors
Rotor
- Sintered Iron
Seal
- Nitrile Lip Seal
Shaft Material
- Steel
Temperature Range
- -30° to +40° C (-22° to +104° F)
Vanes
- Sintered Bronze
Voltage
- 12 or 24 Vdc
Flow Rate
- 50 Litres/min (13 gallons/min)
Self-Priming
- From Dry Up to 2.4 m (7.8 ft)
