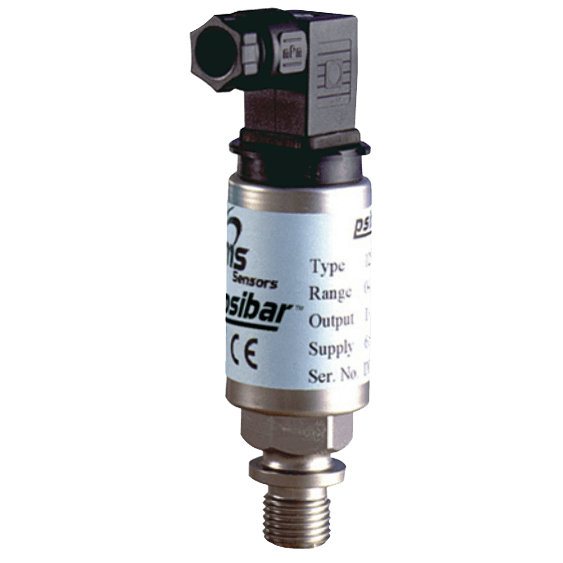

1200/1600 Series OEM Pressure Sensor

Brand: Gems Sensors, Inc

The 1200 Series features stability and toughness via its CVD and ASIC design coupled with a thicker diaphragm. The thicker diaphragm enables these sensors to survive most pressure spikes caused by pump ripple, solenoid valves, etc.

The 1600 Series extends the packaging options by providing an all welded stainless steel back end for demanding industrial applications.

A modular design allows special ordering of fittings, electrical cables, etc. for OEM applications. The ASIC and CVD technology enables Gems to offer almost any output over any pressure range.
Features
  • Gauge, Vacuum, and Compound Pressure Models
  • General Purpose and Wash down Enclosures
  • High Proof Pressure Achieved by Thicker Diaphragm Construction
  • Voltage and Current Output Models

Specifications

Accuracy

  • 0.5 % of Full Scale - Typical

Approvals & Certifications

  • EN 61000-4-2, EN V50140, EN V50204, EN 61000-4-4, EN V50141

Approvals & Certifications

  • CE Marking of EN 50081-2 for Emission, EN 50082-2 for Susceptibility
  • ETL
  • UR (C,US)

BSP Connection

  • G 1/4" Male
  • G 1/8" Male
  • 1/4" BSPT Male

Burst Pressure

  • > 20 x Full Scale ≤ psi: 600 (kPa: 4,137, bar: 40)
  • > 35 x Full Scale ≤ psi: 60 (kPa: 413.7, bar: 4.13)
  • > 5 x Full Scale ≤ psi: 6,000 (kPa: 41,370, bar: 400)

Cable Length

  • 0 to 225 m (0 to 738 ft)

Compensated Temperature

  • -20° to 80° C (-4° to 176° F)

Constant Acceleration

  • 100 G Steady Acceleration

Electrical Connectors

  • 10-6 Bayonet Connector & 8-4 Bayonet Connector
  • Conduit Connector with Cable & Conduit Connector with Flying Leads
  • DIN 43650 Plug
  • Mini DIN with Mate & Mini DIN without Mate for 1200 Series

Enclosure, Body Material

  • 316 Stainless Steel
  • 630 Stainless Steel (17-4 PH)

Environmental Protection

  • IP30
  • IP65
  • IP67 Weatherproof Cable Gland
  • NEMA 4 Cable

Measuring Error

  • Thermal Error: 2 % of Full Scale - Typical

NPT Connection

  • 1/2"-14 Male NPT
  • 1/4"-18 NPT Female
  • 1/4"-18 NPT Male with Snubber
  • 1/8"-27 Male NPT

Operating Temperature

  • -40° to 125° C (-40° to 260° F)

Output

  • 0.5 - 5.5 V
  • 0-10 V
  • 0-5 V
  • 1-11 V
  • 1-5 V
  • 1-6 V
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: -1 to 400
  • kPa: -103.4 to 41,340
  • psi: -15 to 6,000

Pressure Type

  • Compound Pressure
  • Gauge
  • Vacuum

Proof Pressure

  • 4 x Full Scale (< 1 % of Full Scale Zero Shift)

Response Time

  • 0.5 ms

SAE Connection

  • 7/16"- 20 SAE Male (SAE #4, J514, J1926-2)
  • 9/16"-18 SAE Male (SAE #6, J1926-2)

Sensitivity

  • Supply Voltage Sensitivity: 0.01 % of Full Scale/Volt

Shock

  • 20 G, 11 ms, per MIL-STD.-810E Method 516.4 Procedure I

Supply Voltage

  • 1.5 Vdc Above Span to 35 Vdc
  • 24 Vdc
  • 7-35 Vdc

Thermal Drift

  • 0.2 % of Full Scale Per Year (Non-Cumulative)

Tolerance

  • Zero & Span Tolerance: 1 % of Span

Vibration

  • 70 G, Peak-to-Peak Sinusoidal, 5 to 2000 Hz

Wetted Materials

  • AISI 630 Stainless Steel, 17-4 PH
