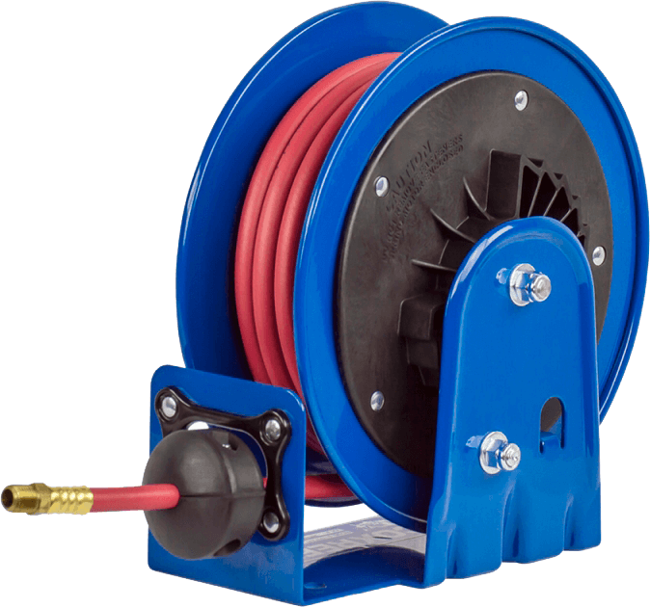

Spring Driven Reels | LG Series

Brand: COXREELS®
Add Product to My Catalog

COXREELS® LG Series "Little Giant" is the first lightweight - heavy duty reel on the market.

The LG is perfect for commercial or industrial applications where space or budget is limited.

It is extremely lightweight and compact and can install almost anywhere.

This little giant can accept either a 1/4" or 3/8" hose to tackle the jobs of reels almost double its size.

Swivel
  • External fluid path with machined from solid brass 90° full-flow NPT swivel
  • Swivel Seals: NITRILE

Design & Structure
  • Compact and lightweight spring driven hose reel save space and facilitate workplace organization.
  • Solid one piece, 12GA steel base and support post for maximum stability.

Retract
  • Enclosed factory tuned and matched cartridge-style spring motor.
Features
  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide
  • SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
  • GROMMET - CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Specifications

Brand

Maximum PSI

  • 300

Length

  • 15 ft
  • 25 ft
  • 10 ft

Inside Diameter

  • 1/4"
  • 3/8"

Hose

  • Optional

Base

  • 12GA Steel

Grommet

  • CoxComposite
