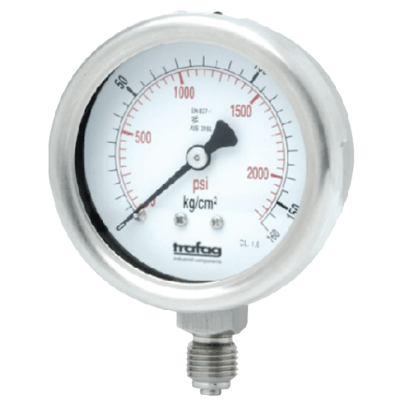

TMP103 Pressure Gauge
Brand: Trafag Sensors & ControlsThe TMP103 All Stainless Steel Pressure Gauge with bourdon tube sensing element offers a robust design in housing size ≤ DN100.
Features- All Stainless Steel measuring system
- Socket-case, direct welded
- Dry / liquid filled
Specifications
Ambient Temperature Range
- -20° to 65° C (-4° to 150° F) (with Dampening Liquid)
- -40° to 65° C (-40° to 150° F) (without Dampening Liquid)
Applications
- Chemical & Petrochemical
- Corrosive Environments
- Food & Beverage
- Liquid & Gaseous Mediums
Approvals & Certifications
- EN 837-1
- Material Certificate
BSP Connection
- 1/2" BSP Male
- 1/4" BSP Male
- 3/8" BSP Male
Environmental Protection
- IP65
- IP66
- IP67
Fill Material
- Dampening Liquid Filled, Glycerine
- Dampening Liquid Filled, Silicon Oil
Gasket Material
- NBR
- Neoprene
Lens
- Lens: Sheet Glass / Shatterproof Safety Glass
Materials of Construction
- Bourdon Tube & Shank: AISI 316L Stainless Steel
Metric Connection
- M20 x 1.5 Male
Mounting
- Direct Mounting
- Panel Mount
- Surface
- Wall Mounting
- Yoke Mounting
Movement
- AISI 316 Stainless Steel
Name Plate, Tag Material
- AISI 304 Stainless Steel
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
- 1/8" NPT Male
Pressure Range
- bar: -1 to 1,000
- kPa: -100 to 100,000
- psig: -14.5 to 14,503
Ring Material
- Case & Ring Material: AISI 304 Stainless Steel (Bayonet Typical)
- Case & Ring: AISI 316 Stainless Steel
Service Temperature
- Maximum
Size
- 2" (50 mm)
- 2-1/2" (63 mm)
- 3" (80 mm)
- 4" (100 mm)
- Food & Beverages
- Chemical & Petrochemical
- Corrosive Environments
- Liquid & Gaseous Mediums
