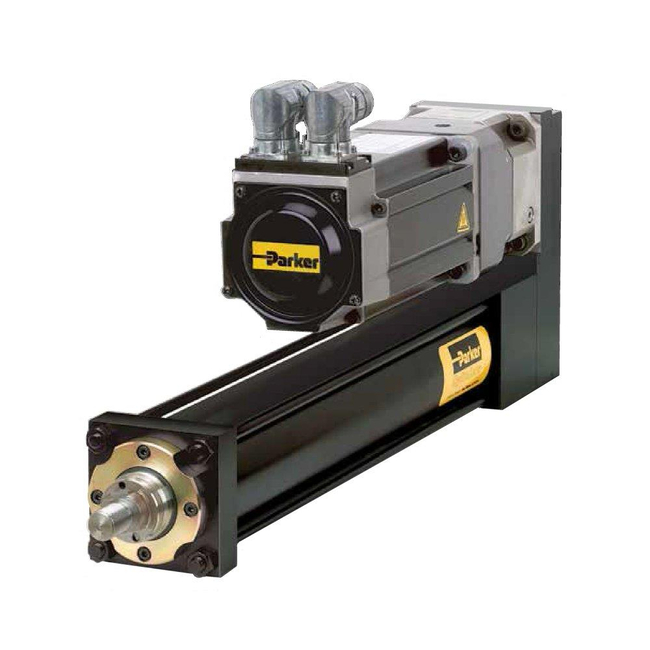

XFC090 Extreme-Force Screw Drive Electric Cylinder/Actuator
Brand: Parker HannifinXFC090 actuators utilize roller screw technology to attain thrust forces up to 15000lbs.
These electric cylinders are made of an all steel construction and are built to a standard metric hydraulic cylinder design for easy integration into your system.
Specifications
Brand
Additional Protection Option
- None
Corrosion Resistant Option
- Yes (Stainless Steel)
Drive Type
- Screw
IP Protection Rating
- IP00
Maximum Acceleration (Inch/S2)
- 773
Maximum Acceleration (m/S2)
- 19.6
Maximum Speed (inch/sec)
- 28
Maximum Speed (m/sec)
- 0.71
Maximum Stroke (inch)
- 66.9
Maximum Stroke (mm)
- 1700
Maximum Thrust (Lbs)
- 15000
Maximum Thrust (N)
- 68000
Operating Temperature (°C)
- -23° to +73° C (Standard Seals) / -23° to +110° C (Fluorocarbon Seals)
Operating Temperature (°F)
- -10° to +165° F (Standard Seals) / -10° to +230° F (Fluorocarbon Seals)
Position Repeatability (± Inch)
- 0.001
Position Repeatability (± mm)
- 0.03
Profile Width (mm)
- 90
Rod End Dimension
- 90 mm Bore
Series
- XFC
