Add the MPS-G Position Sensor to your store or catalog
Book Your Demo and See How
or create your store

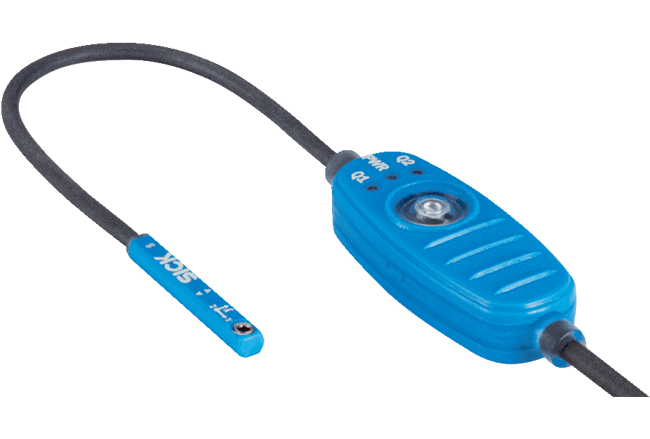

Position Sensors, MPS-G.png

MPS-G Position Sensor

Brand: Sick AG
Add Product to My Catalog

MPS-G position sensors continuously detect the position of the fingers of pneumatic grippers and the piston position of miniature cylinders using a direct, non-contact method. The magnetic distance measuring system with the compact design enables extremely precise position determination. The sensor supports countless wiring and control concepts.

SICK offers two product variants for this purpose: Sensors with analog voltage output and IO-Link sensors with Smart Sensor profile and two adjustable digital switching outputs – the right solution for nearly any requirement.

Via IO-Link, the MPS-G also delivers comprehensive diagnostic data including performance data from pneumatic drives or data on condition monitoring of systems.

At a glance
  • Position feedback with a measuring range of up to 50 mm
  • Programming of up to 3 digital switching signals
  • 16 switching points via IO-Link
  • Adjustment of digital switching outputs via dynamic teach-in
  • Diagnostic data of grippers and cylinders
  • Data on machine temperature and vibration
  • Detection of sensor head orientation
Features
  • Definition of two, three or more switching points to differentiate between gripper positions and several objects
  • Simple measurement of components with absolute position value
  • Reproducible detection of very small object tolerances
  • Completely protected due to flush installation of the sensor head
  • Optimizes costs in orientation detection of objects and vibration monitoring in sensitive manufacturing process as additional sensors are not needed
  • Optimizes processes and predictive maintenance of pneumatic systems by monitoring the drive performance
  • Simplifies temperature monitoring in systems due to integrated temperature sensor

1 - 11 of 11 Part Numbers
1108672
1108672
  • Output Fuction - Analog
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CFH15D43ZZZ
1108673
1108673
  • Output Fuction - Analog
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CSH15D43ZZZ
1108674
1108674
  • Output Fuction - Analog
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CSH55D43ZZZ
1108675
1108675
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CFH15D31DZZ
1108676
1108676
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CSH15D31DZZ
1108677
1108677
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CSH55D31DZZ
1108678
1108678
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M12, with Knurled Nuts, 0.3 m
  • Type - MPS-G50CFH13E31DZZ
1108679
1108679
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M12, with Knurled Nuts, 0.3 m
  • Type - MPS-G50CSH13E31DZZ
1108680
1108680
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M12, with Knurled Nuts, 0.3 m
  • Type - MPS-G50CSH53E31DZZ
1108681
1108681
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CFH15D31DZZ
1108682
1108682
  • Output Fuction - IO-Link
  • Measuring Range - 50 mm
  • Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Type - MPS-G50CSH15D31DZZ
1 - 11 of 11 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE
  • cULus Listed

Output Function

  • Analog / IO-Link

Special Features

  • Completely Embedded Mounting in the Slot, Providing Protection

Cylinder Type with Adapter

  • T-slot Cylinders
  • Round Body Cylinder
  • Profile Cylinders and Tie-Rod Cylinders

Measuring Range

  • 50 mm

Housing Length

  • 25 mm

Supply Voltage

  • 13-30 Vdc
  • 10-30 Vdc

Connection Type

  • Cable with Connector M8, with Knurled Nuts, 0.5 m
  • Cable with Connector M12, with Knurled Nuts, 0.3 m

Cable Length

  • 0.3 m, 0.5 m

  • Handling and assembly
  • Pick-and-place applications in the electronics industry
  • End-of-Arm Tooling and robot grippers
