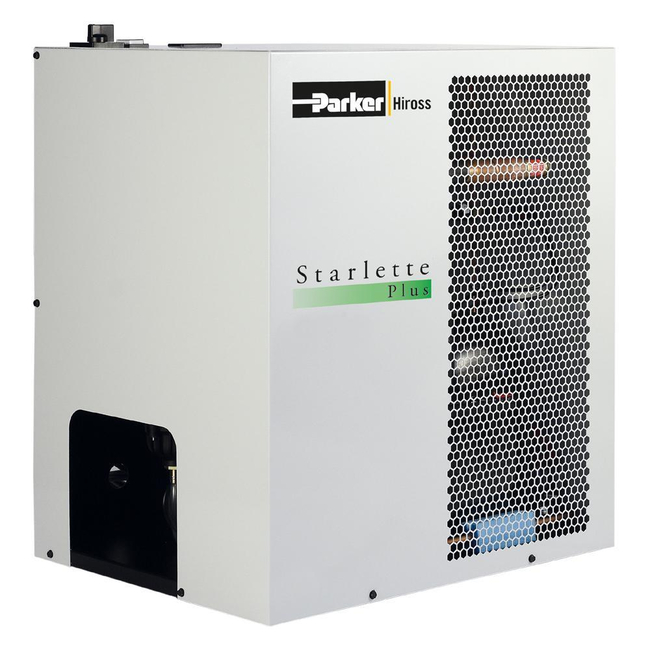

Starlette Plus Small To Medium Flow Compressed Air Refrigeration Dryers

Starlette Plus Small To Medium Flow Compressed Air Refrigeration Dryers

Brand: Parker Hannifin
Add Product to My Catalog

High efficiency refrigeration dryers volume flows up to 360 m³/hr @ 7 barg as standard and pressure dew points between +3°C and +10°C.

Specifications

Brand

Maximum Flow Rate

  • 14 to 212 cfm @ 100 psig

Width

  • 8.27" to 16.73" (210 to 425 mm)

Maximum Ambient Temperature

  • 50° C (122° F)

Maximum Operating Temperature

  • 65° C (149° F)

Minimum Operating Temperature

  • 5° C (41° F)

Height

  • 16.93" to 23.62" (430 to 600 mm)

Minimum Operating Pressure

  • 44 psig (3 barg)

Maximum Operating Pressure

  • 232 psig (16 barg)

Dryer Technology

  • Refrigeration

Depth

  • 17.72" to 21.85" (450 to 555 mm)

Pressure Dew Point

  • +37° F, +45° F & +50° F Options Available
  • +3° C, +7° C & +10° C Options Available

Power Volts / Phase / Hz

  • 230 V 1-Phase 50 Hz (60 Hz on Request)

Port Connection

  • 1/2" to 1-1/2"

Connection Type

  • BSPP

Weight

  • 19 to 60 kg (42 to 132 lb)
